Project 02

Yogi

A portable cooking and meal prep system designed to help college students prepare flexible meals around unpredictable schedules.

Role Research, product form development, CAD, prototyping, app/system design
Methods Interviews, affinity mapping, personas, task flows, CAD, app prototyping, user testing
Context Georgia Tech Industrial Design studio

Context

Making meal prep work for unpredictable student schedules.

Yogi began as a response to the way college students struggle to maintain consistent cooking habits around changing schedules, shared kitchens, limited storage, cleanup burden, ingredient waste, and planning fatigue.

The goal was not just to make another lunchbox, but to create a system that could support cooking from raw ingredients with less time pressure and fewer barriers to follow-through.

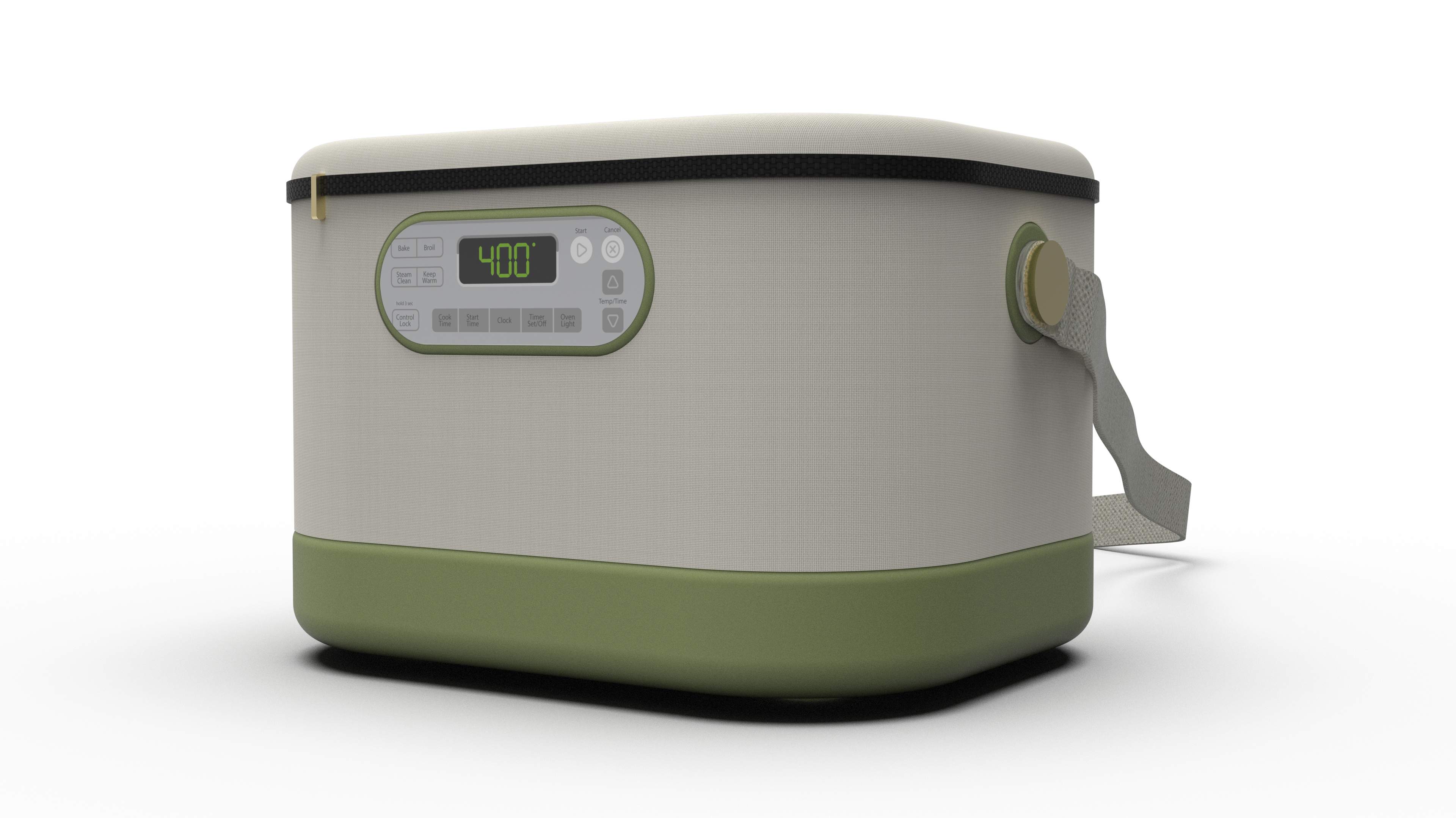

Yogi portable cooking system and companion app

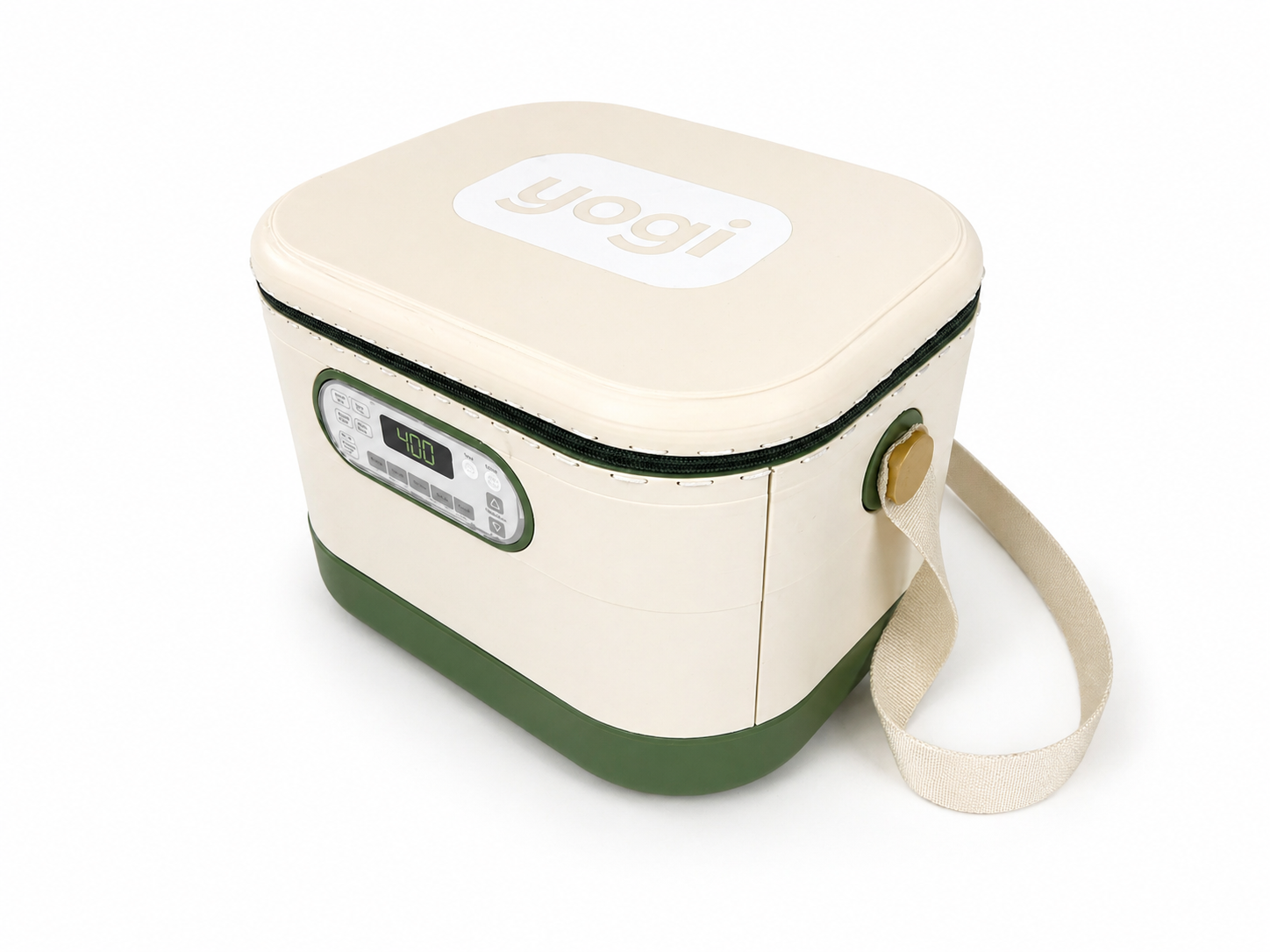

Physical Yogi prototype showing the soft lunchbox form, strap, lid branding, and front control panel

Problem Framing

Students intend to cook, then end up eating out.

Research pointed toward a recurring gap between intention and follow-through. Students wanted to cook and meal prep, but time constraints, cleanup, ingredient waste, and decision fatigue often made eating out or choosing convenience food feel easier.

This pushed the project toward an efficient, low-effort, adaptable system that could support busy schedules and reduce the number of decisions required before eating.

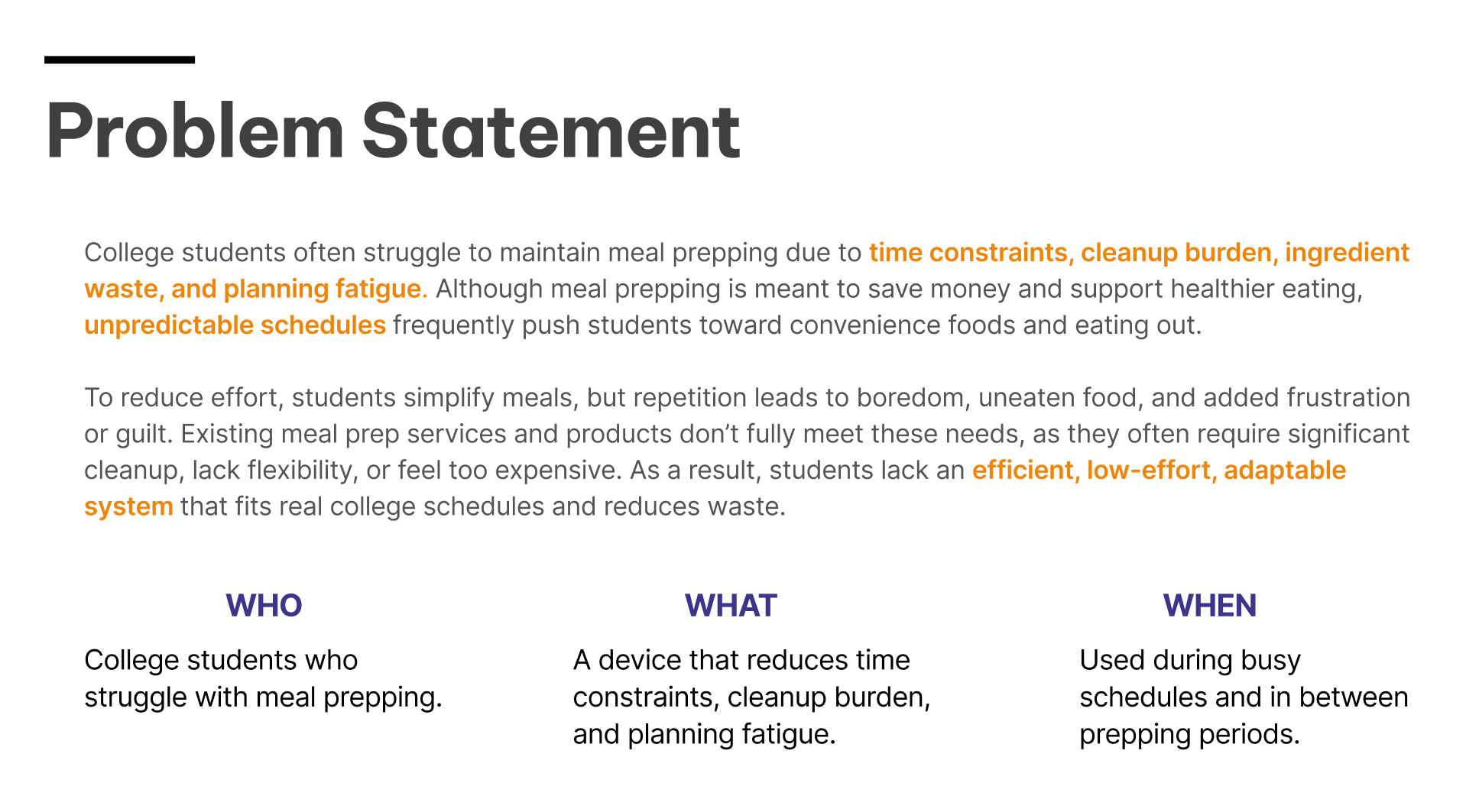

Yogi problem statement about college meal prep barriers

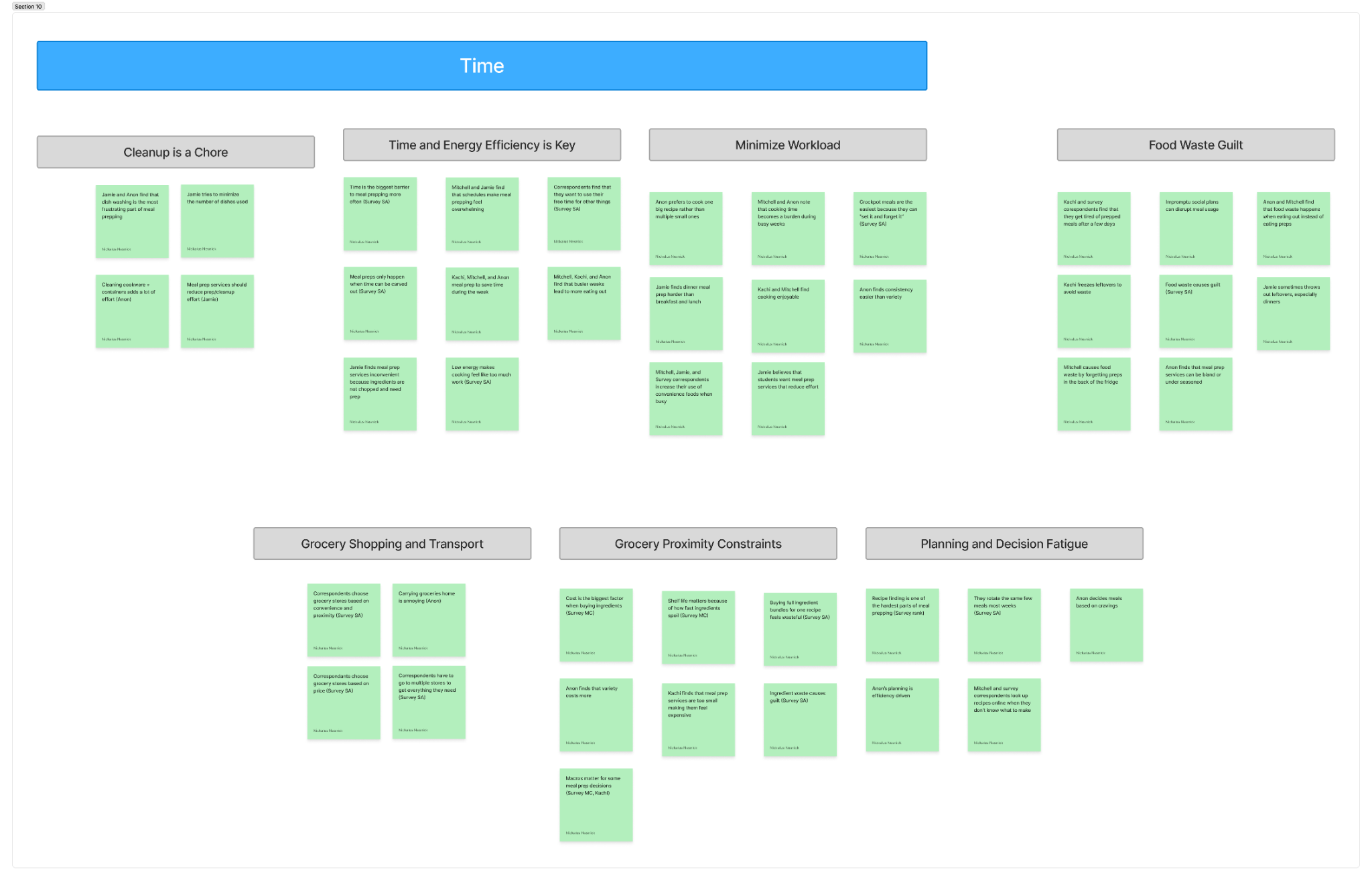

Affinity map organizing research findings around college meal prep

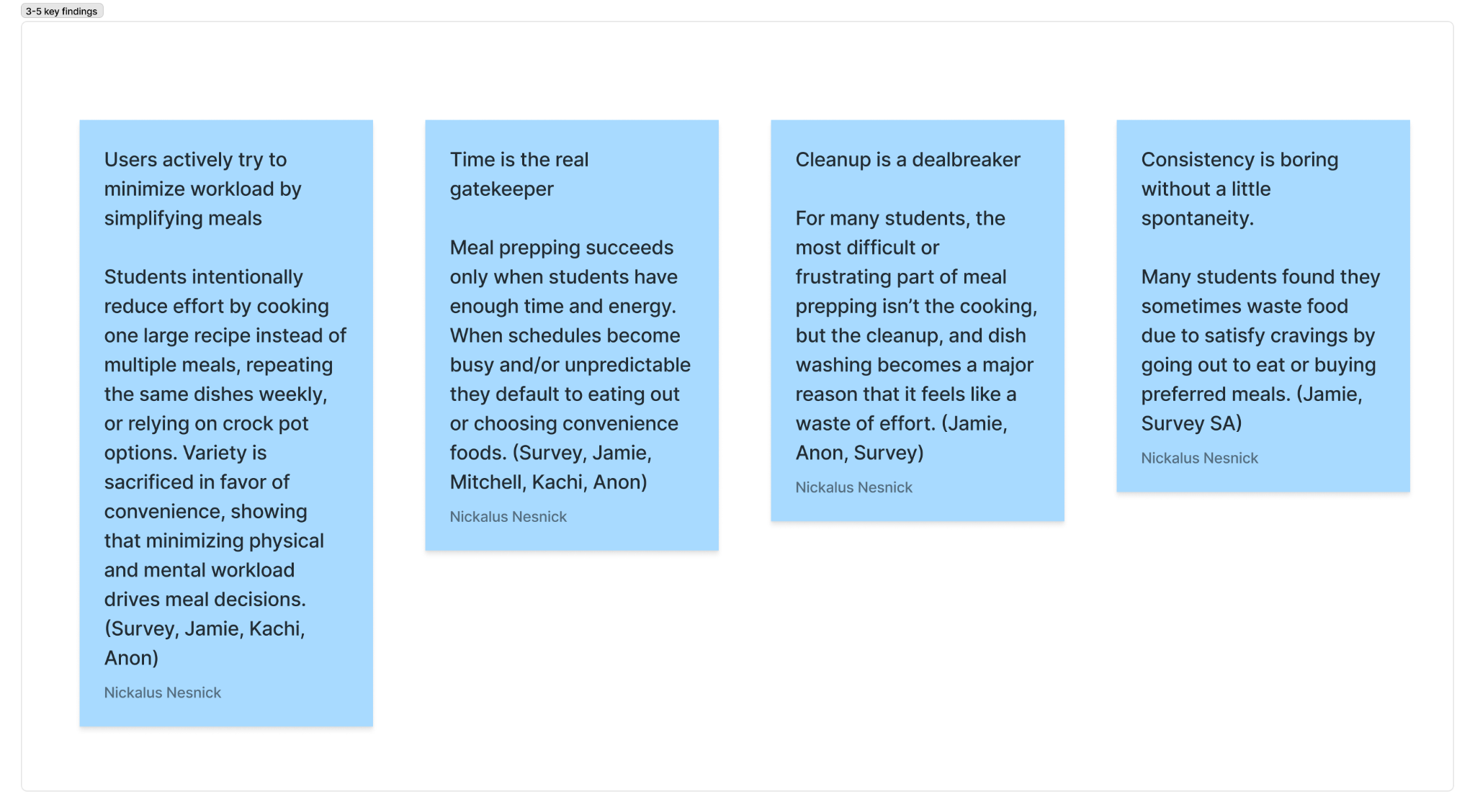

Key research findings from Yogi meal prep research

Research Synthesis

Mapping different student needs around health, energy, space, and routine.

Personas were used to understand how different students experience the same meal prep problem through different constraints, including diabetes management, stomach sensitivities, chronic stress, limited dorm kitchens, inconsistent motivation, and limited prep time.

Across these situations, the strongest opportunities centered on reducing friction, improving accessibility, supporting adaptability, and preventing meal prep from becoming repetitive or restrictive.

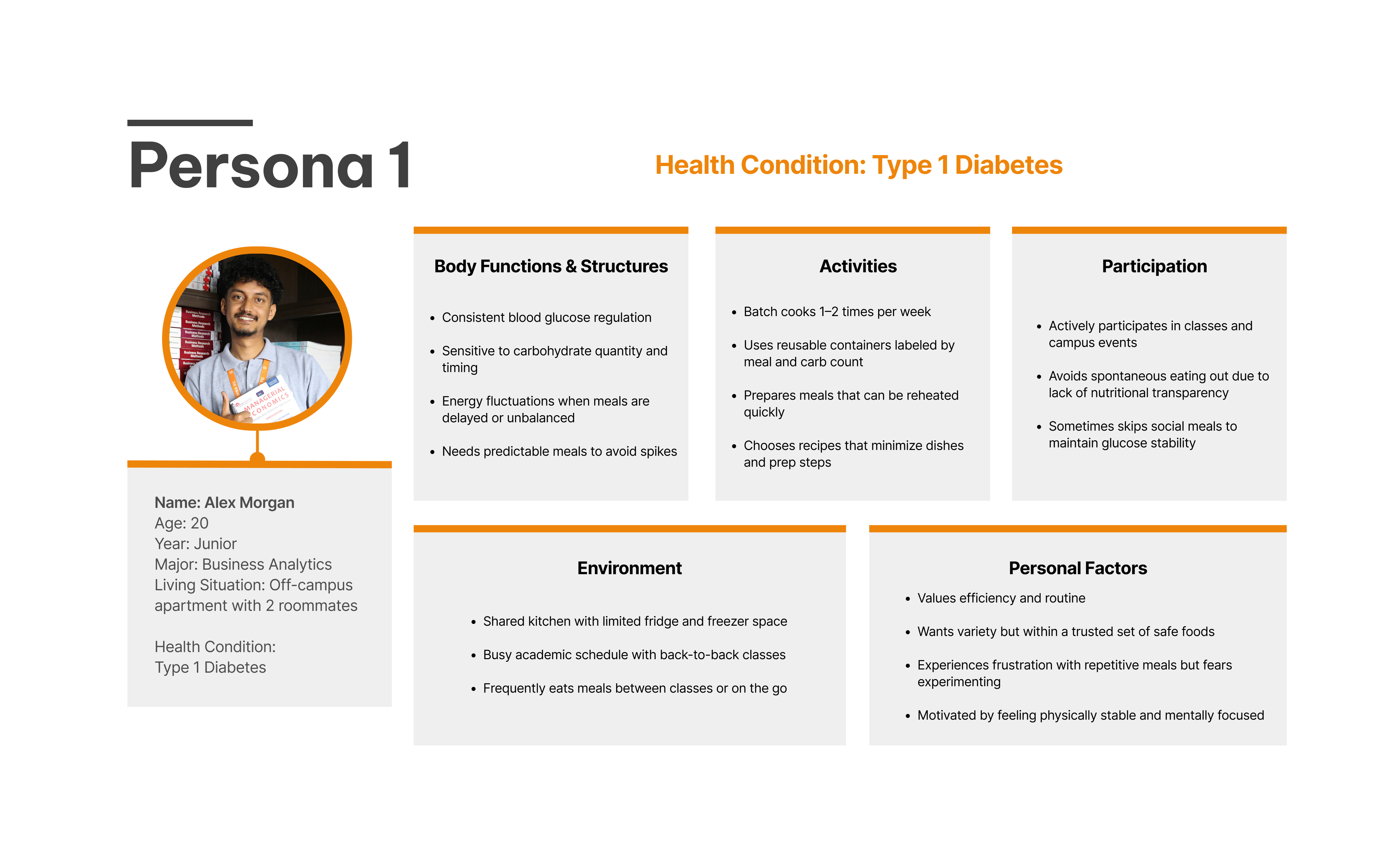

Persona 1 for Yogi research focused on Type 1 diabetes

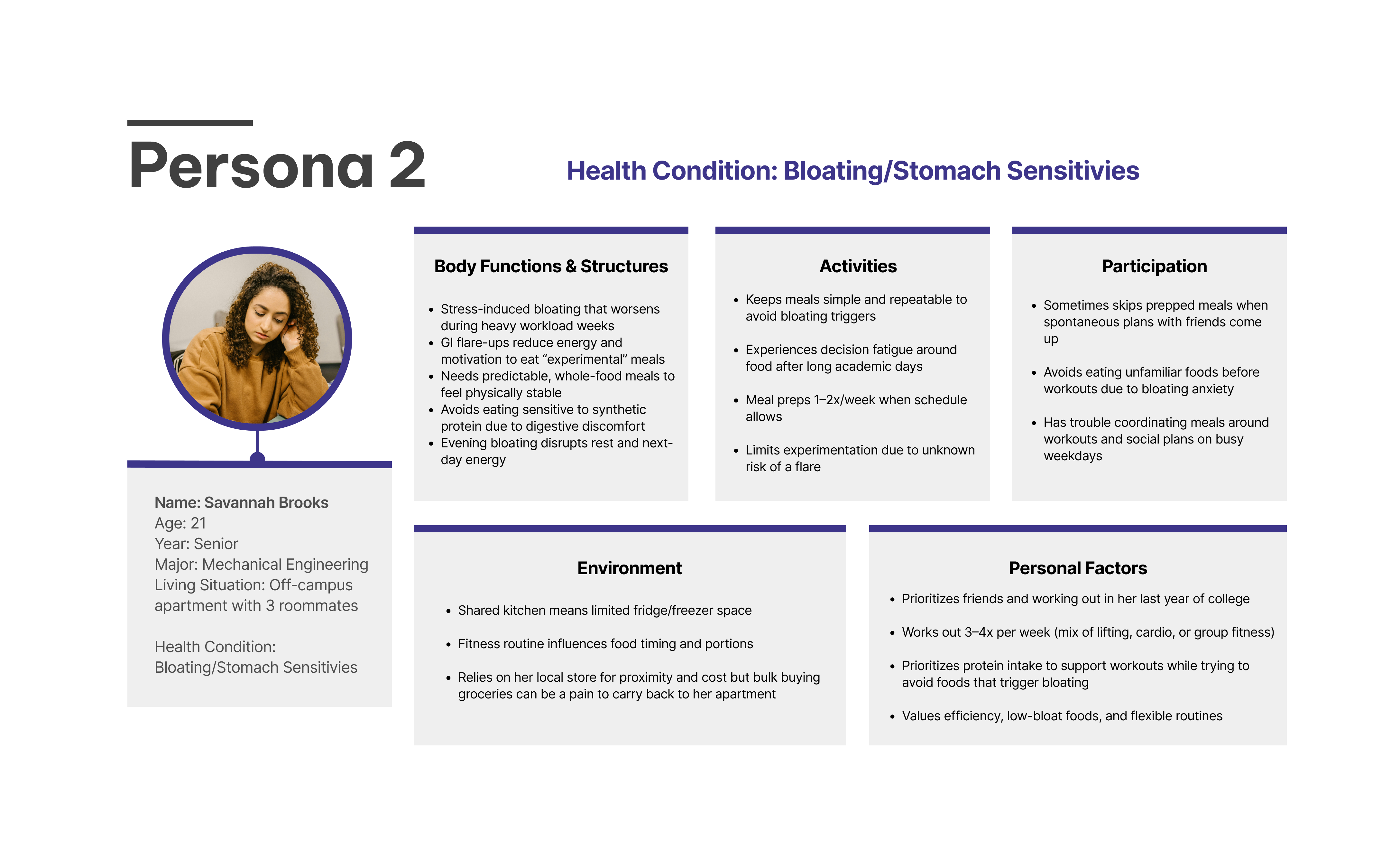

Persona 2 for Yogi research focused on bloating and stomach sensitivities
Persona 3 for Yogi research focused on chronic stress and tension headaches
Yogi focal points including friction, accessibility, adaptability, and variety

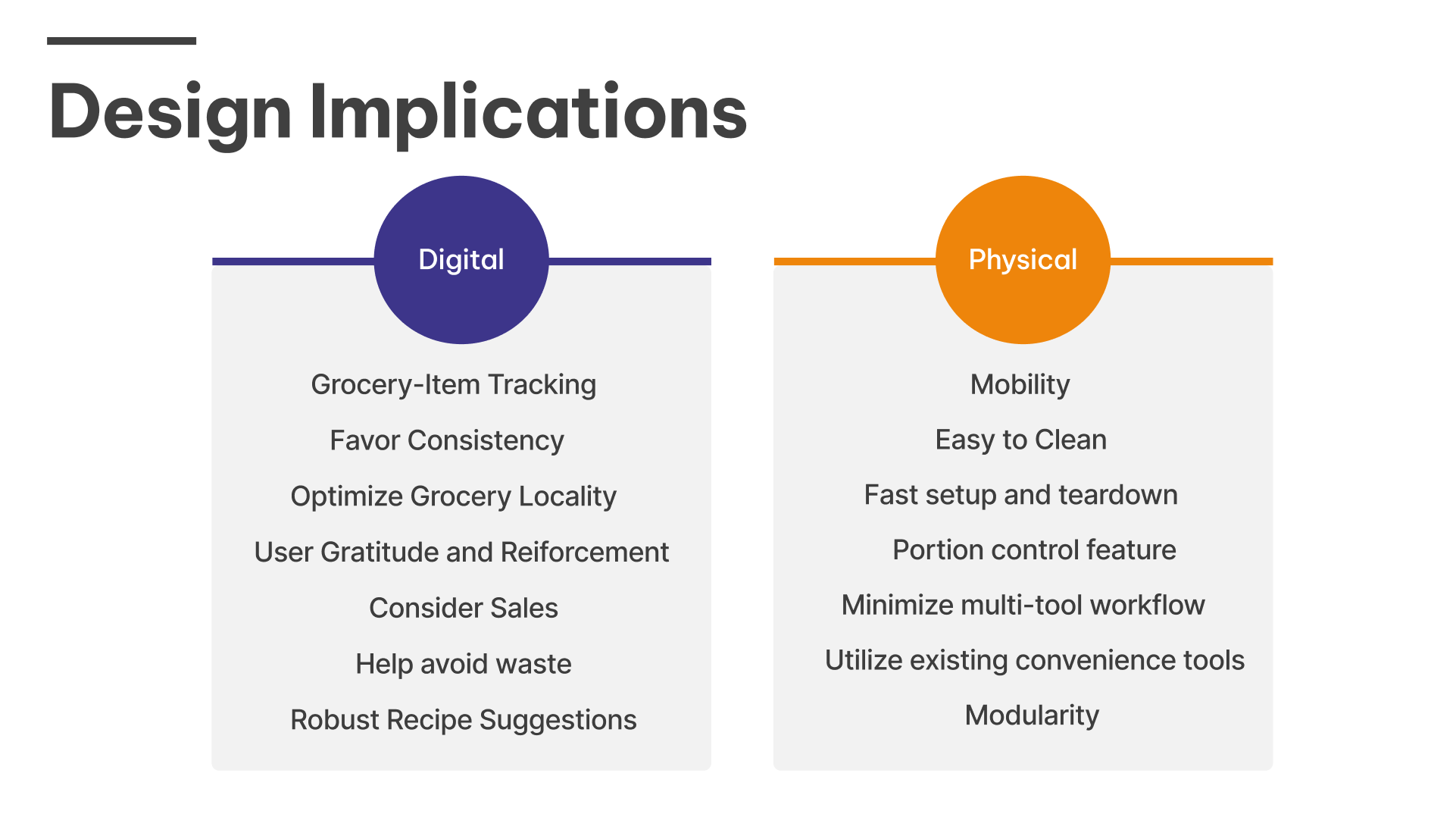

Yogi design implications for digital and physical system needs

Concept Exploration

Testing different ways to reduce meal prep burden.

Early design directions explored three different approaches: a carb meter scanner, a modular lunchbox, and a portable cooking top. Each direction addressed prevention, treatment, or preparation from a different angle.

The modular lunchbox and portable cooking concepts became the strongest foundation because they directly addressed mobility, cleanup, portioning, cooking flexibility, and the need for a system that could work around student routines.

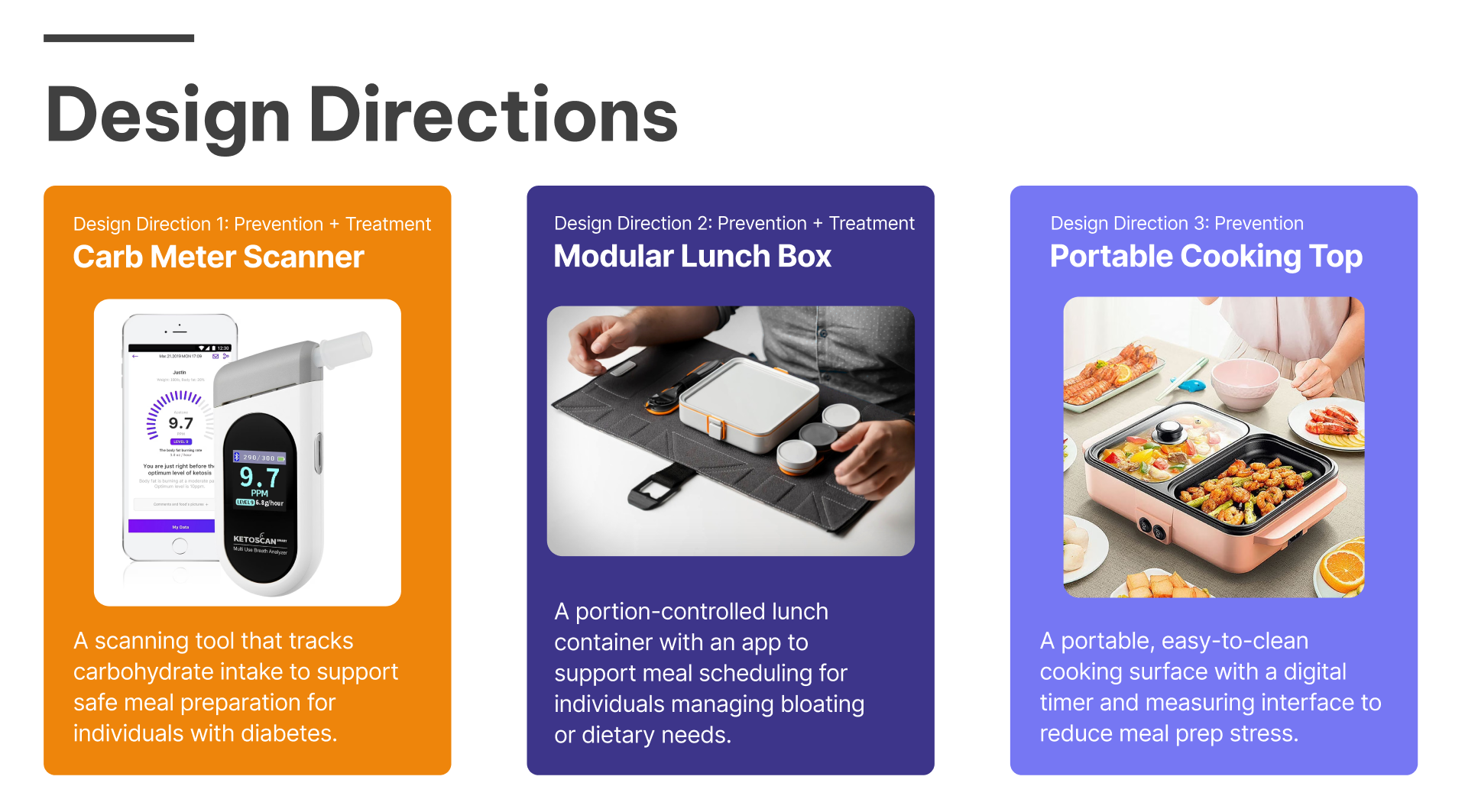

Three early Yogi design directions

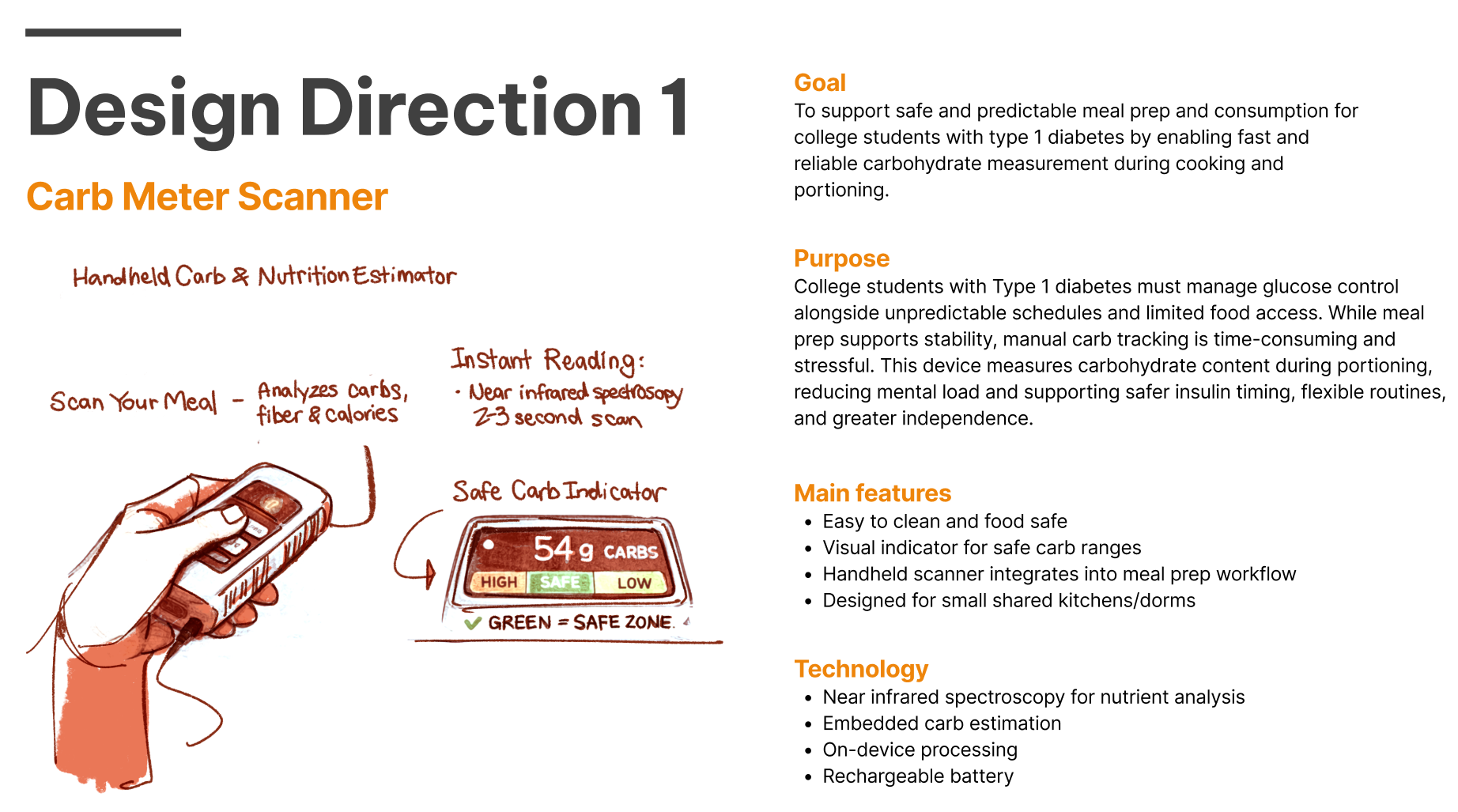

Yogi design direction 1 carb meter scanner concept

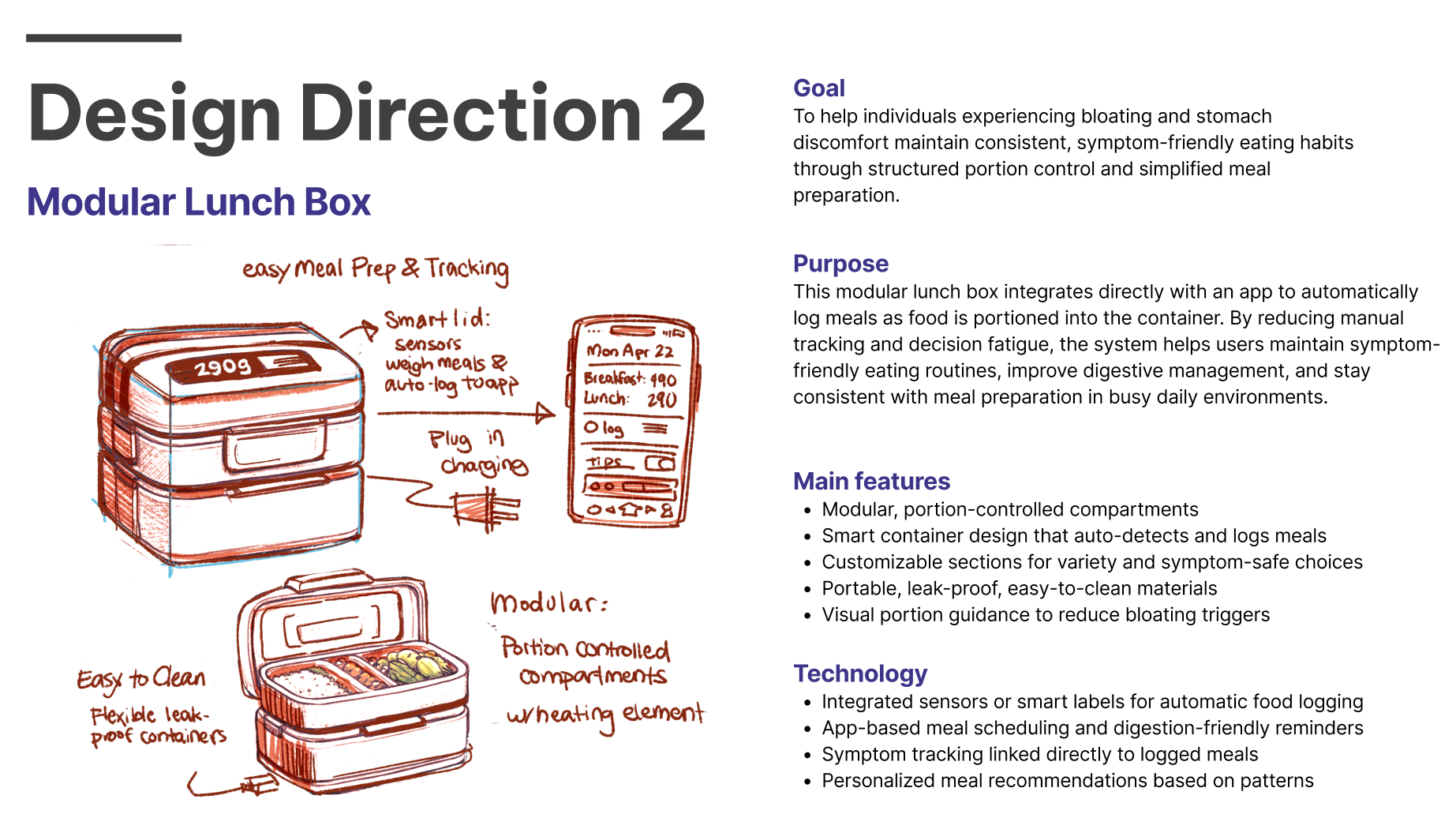

Yogi design direction 2 modular lunchbox concept

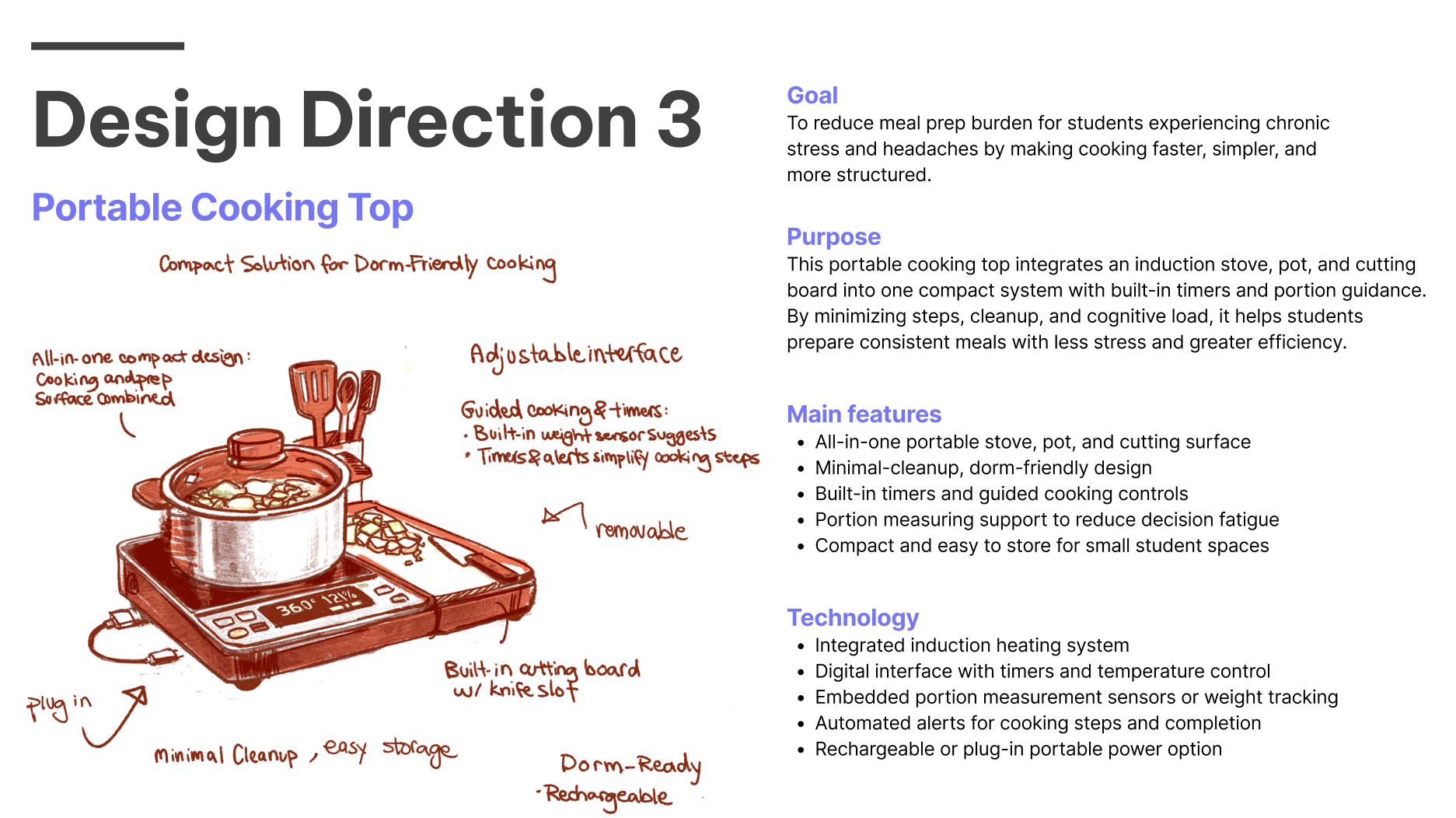

Yogi design direction 3 portable cooking top concept

Refined Direction

A modular lunchbox paired with a meal tracking app.

The refined concept became a sleek, modular lunchbox designed for college students that can cook and prepare meals on the go, paired with an app offering meal tracking, ingredient preservation tips, and personalized recipe suggestions.

The physical product handled portability, cooking, heat insulation, storage, and modularity, while the app handled ingredients, recipes, onboarding, cooking control, and feedback.

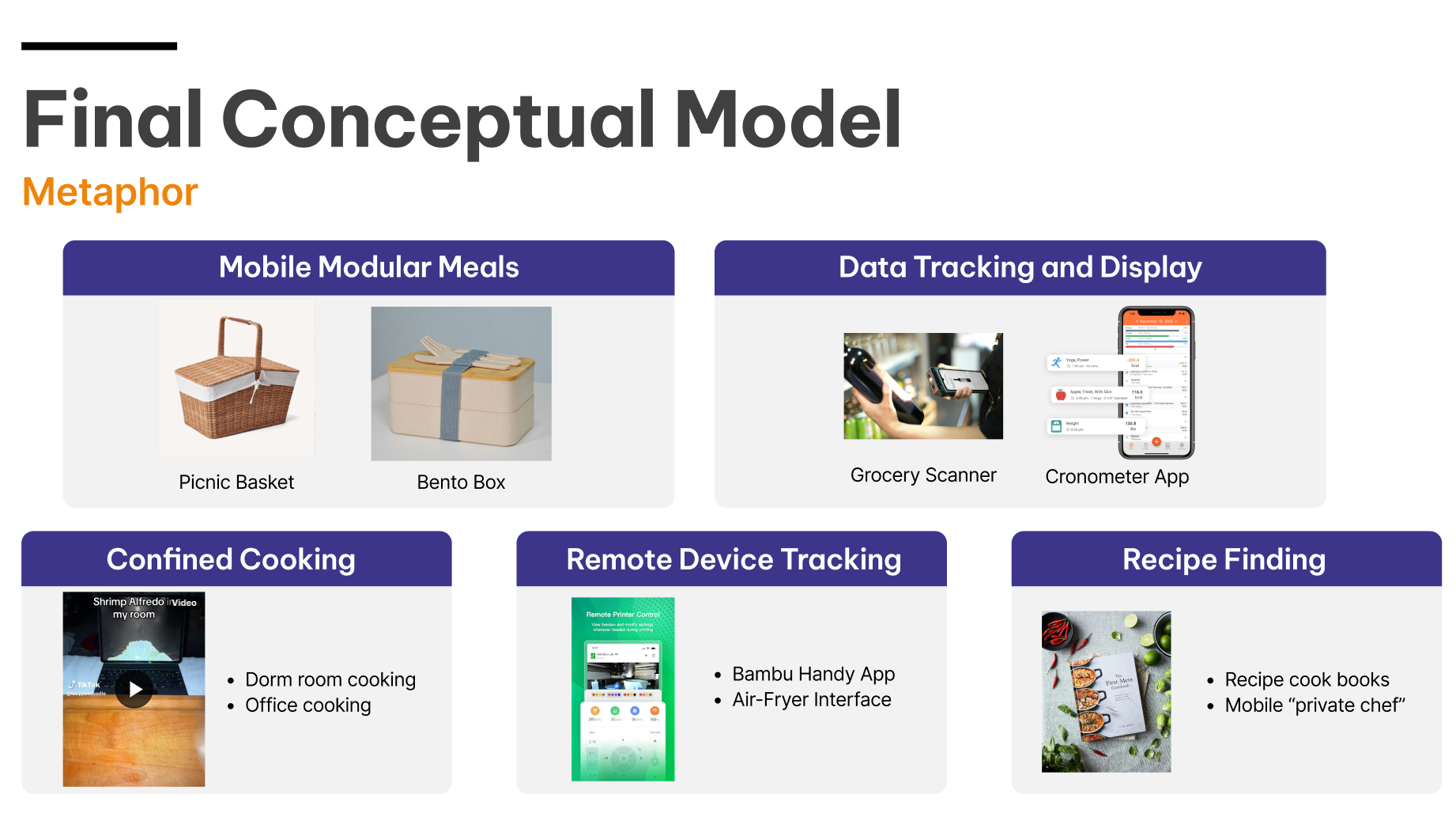

Yogi final conceptual model and metaphor board

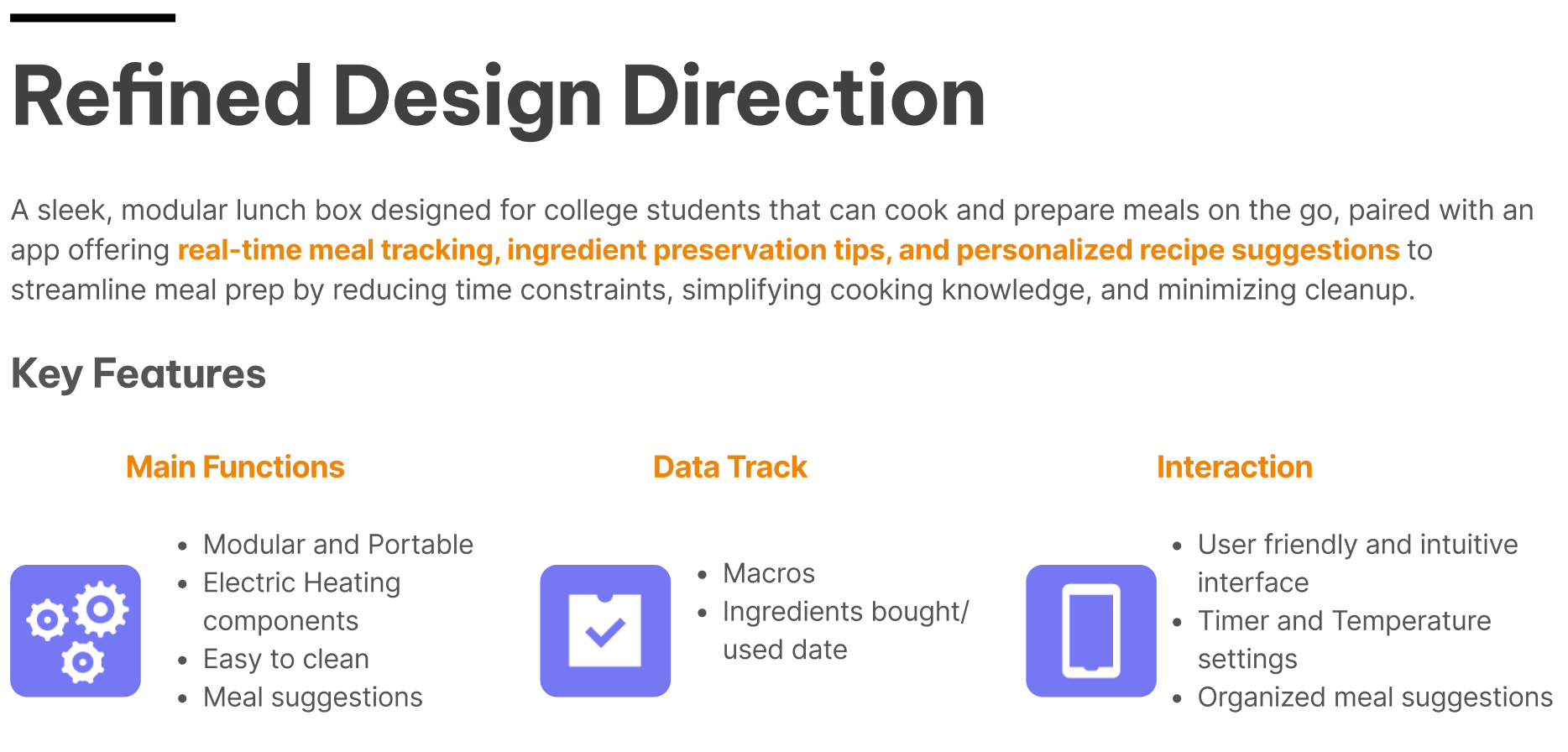

Yogi refined design direction and key features

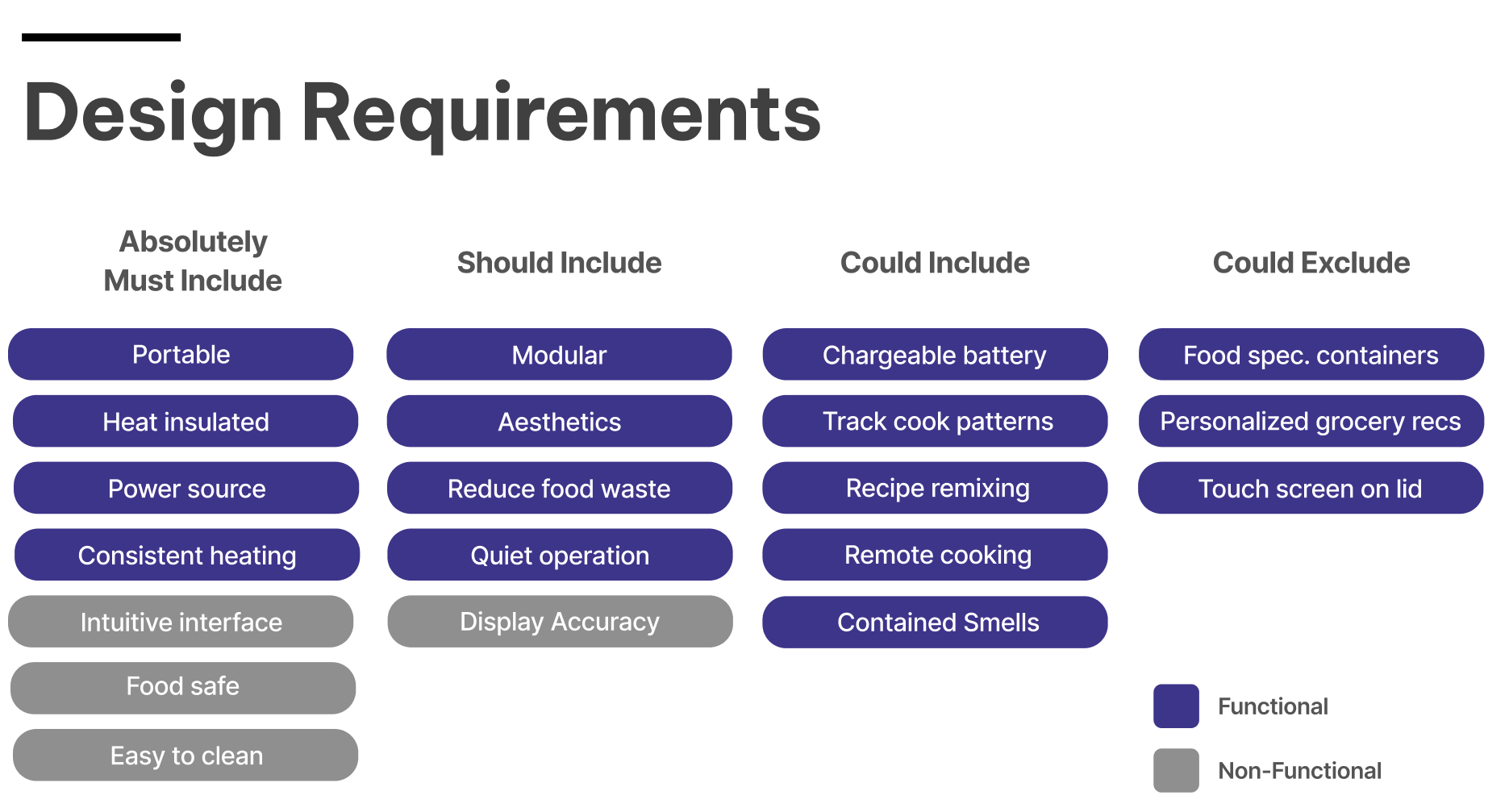

Yogi design requirements organized by priority

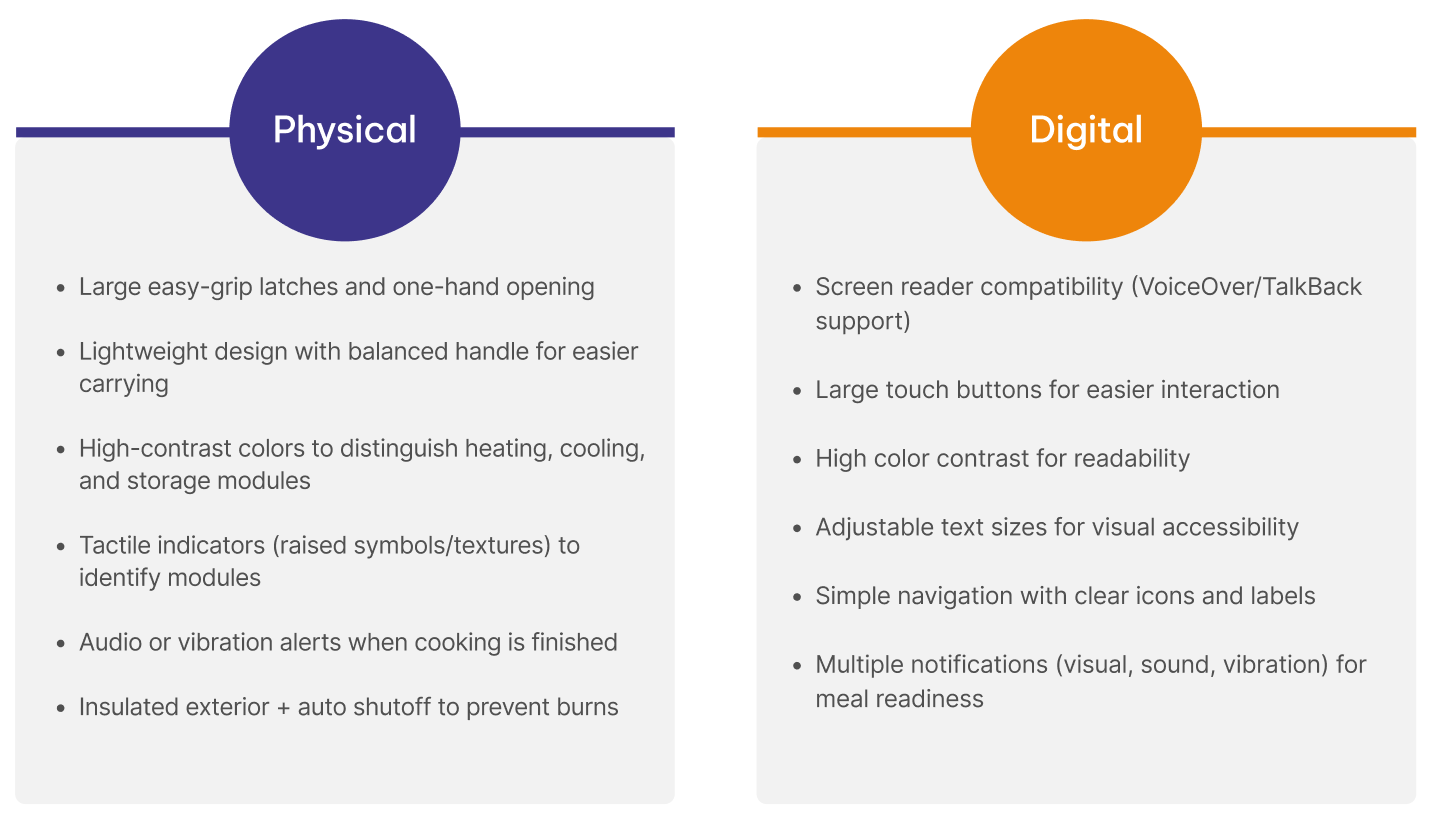

Yogi physical and digital accessibility considerations

System Planning

Connecting the lunchbox, app, ingredients, recipes, and cooking flow.

The system needed to work as both a physical product and a digital service. Storyboards and task flows mapped how a student would check ingredients, choose a recipe, prep food, load the lunchbox, cook later, and receive status updates.

The interaction model balanced visible actions, like carrying, loading, and cooking, with less visible system behavior, like ingredient tracking, Bluetooth connection, cooking status, and recipe suggestions.

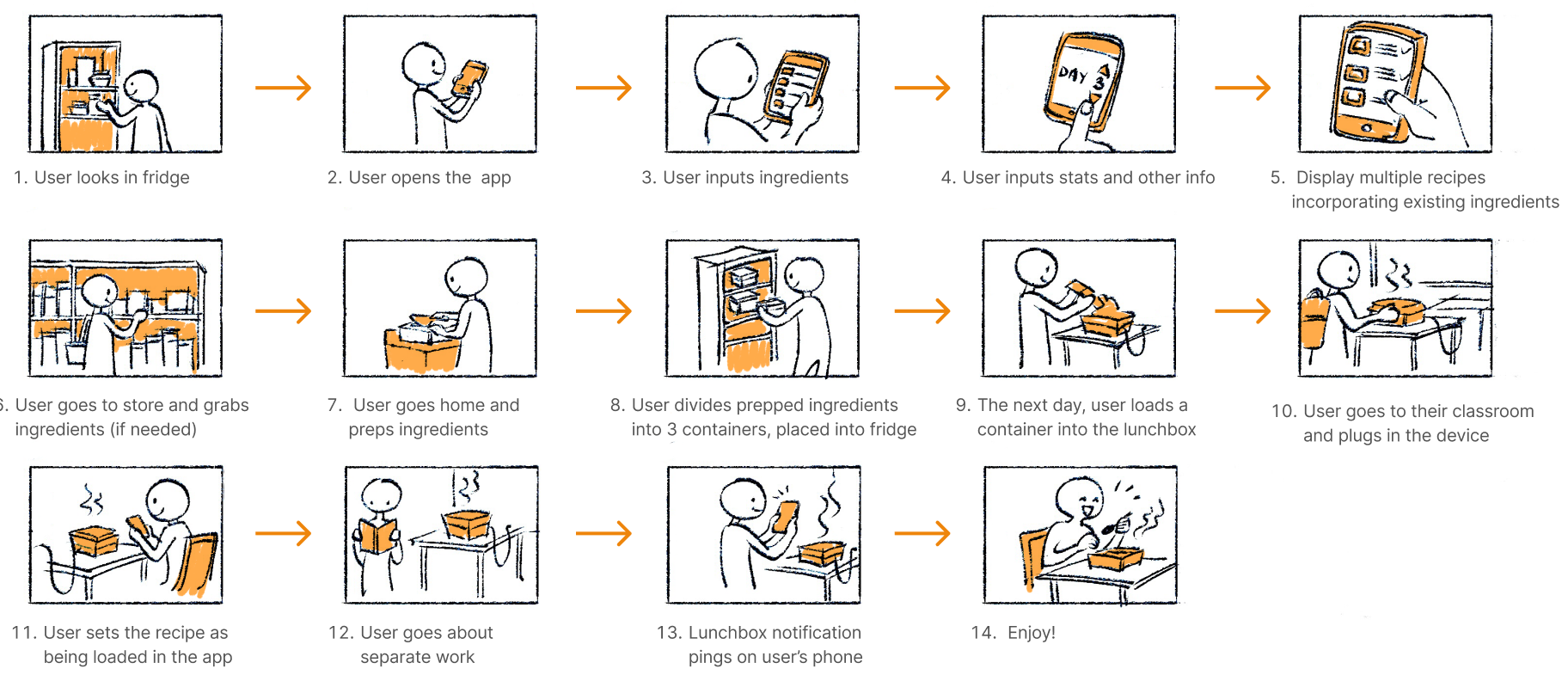

Storyboard showing Yogi meal prep and cooking use scenario

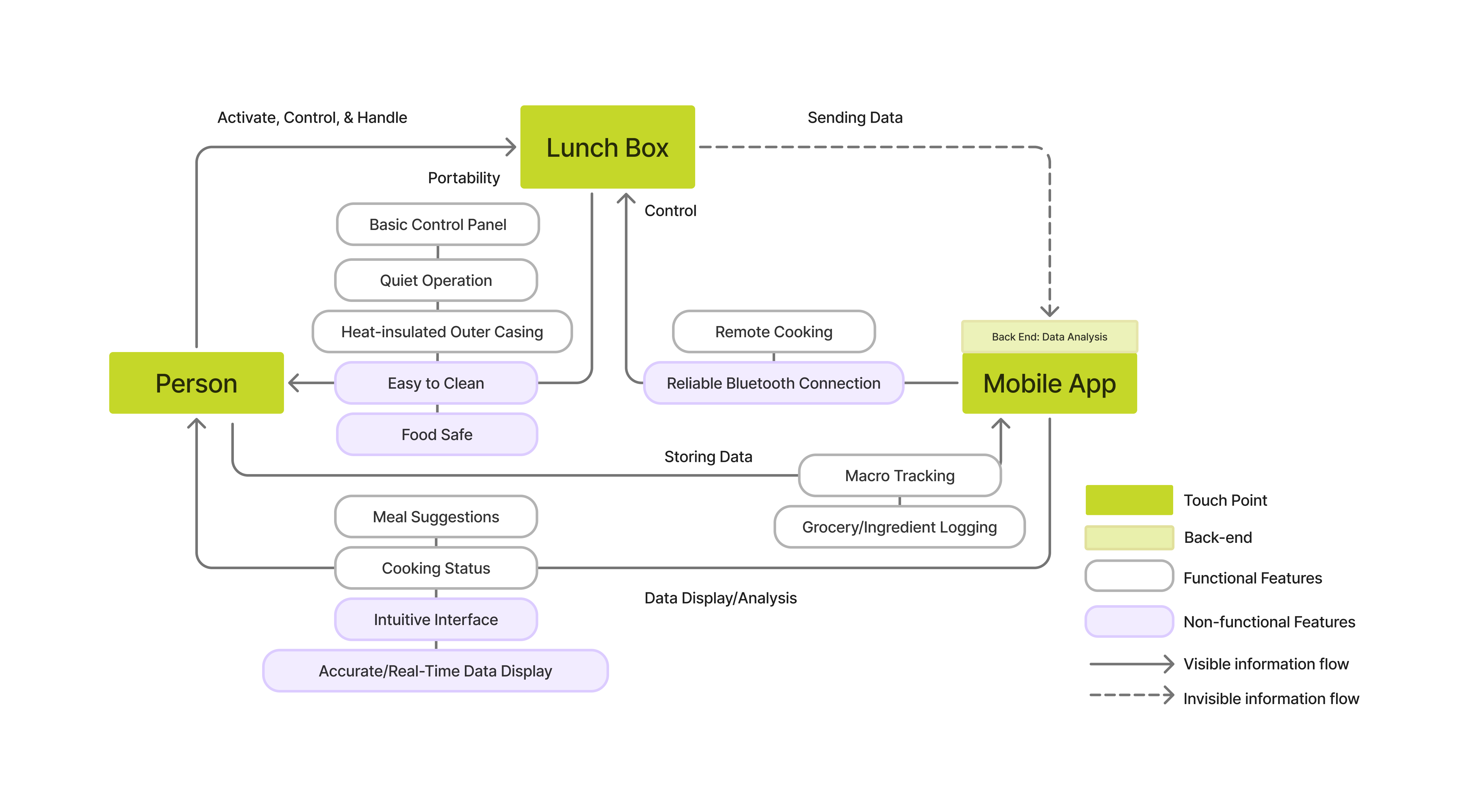

Yogi system diagram showing lunchbox and mobile app information flow
Yogi user task flow for onboarding and main app features

Physical Development

Developing the lunchbox as a portable cooking object.

Physical development moved through sketching, CAD, and mid-fidelity prototyping. The lunchbox needed to feel familiar enough to carry, but capable enough to cook, insulate, and organize food without adding another complicated object to a student’s routine.

The mid-fidelity model helped define the structure, handle, casing, control panel, removable tray, and material strategy before the final visual design was refined.

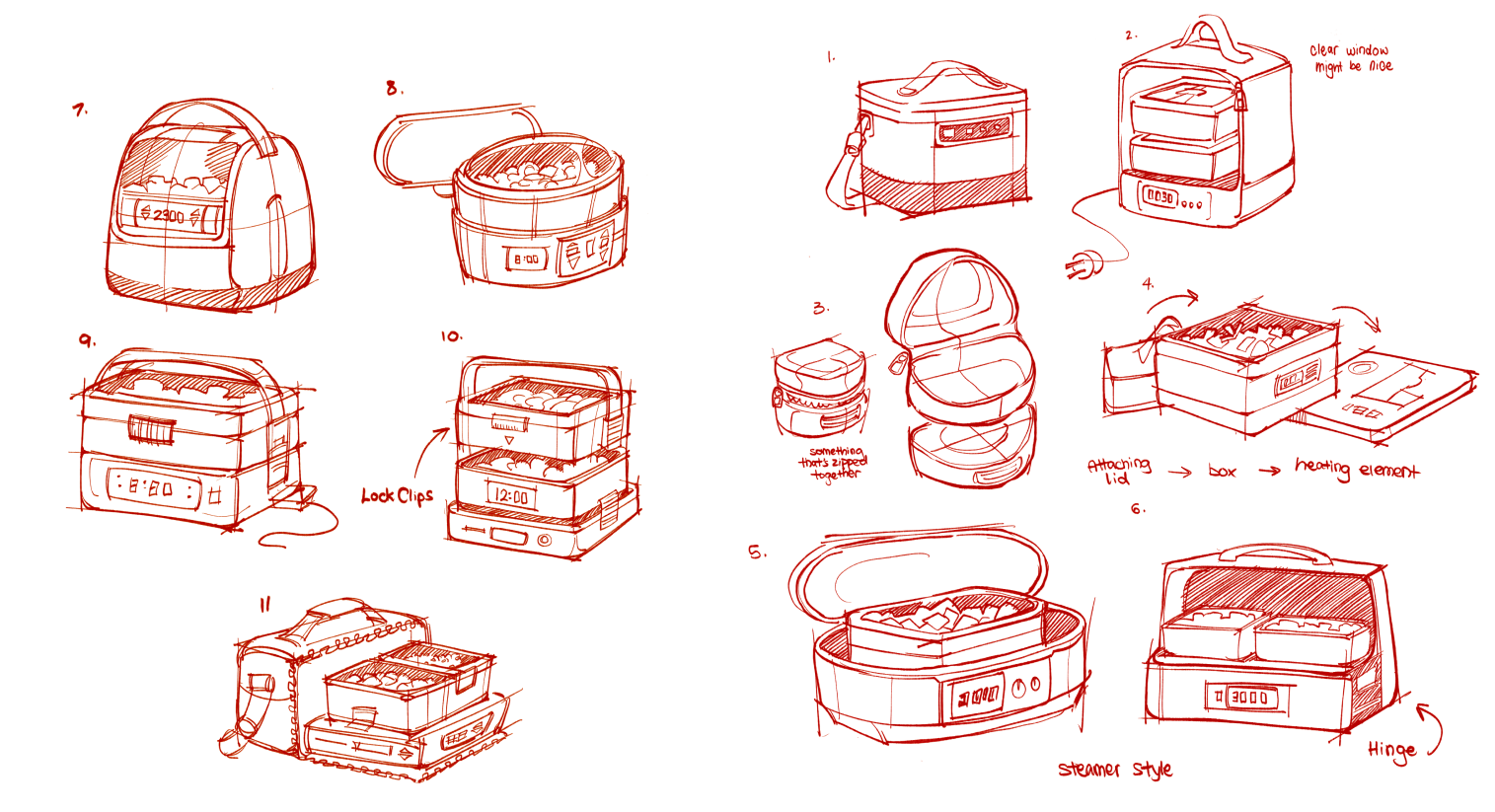

Early Yogi physical product sketches

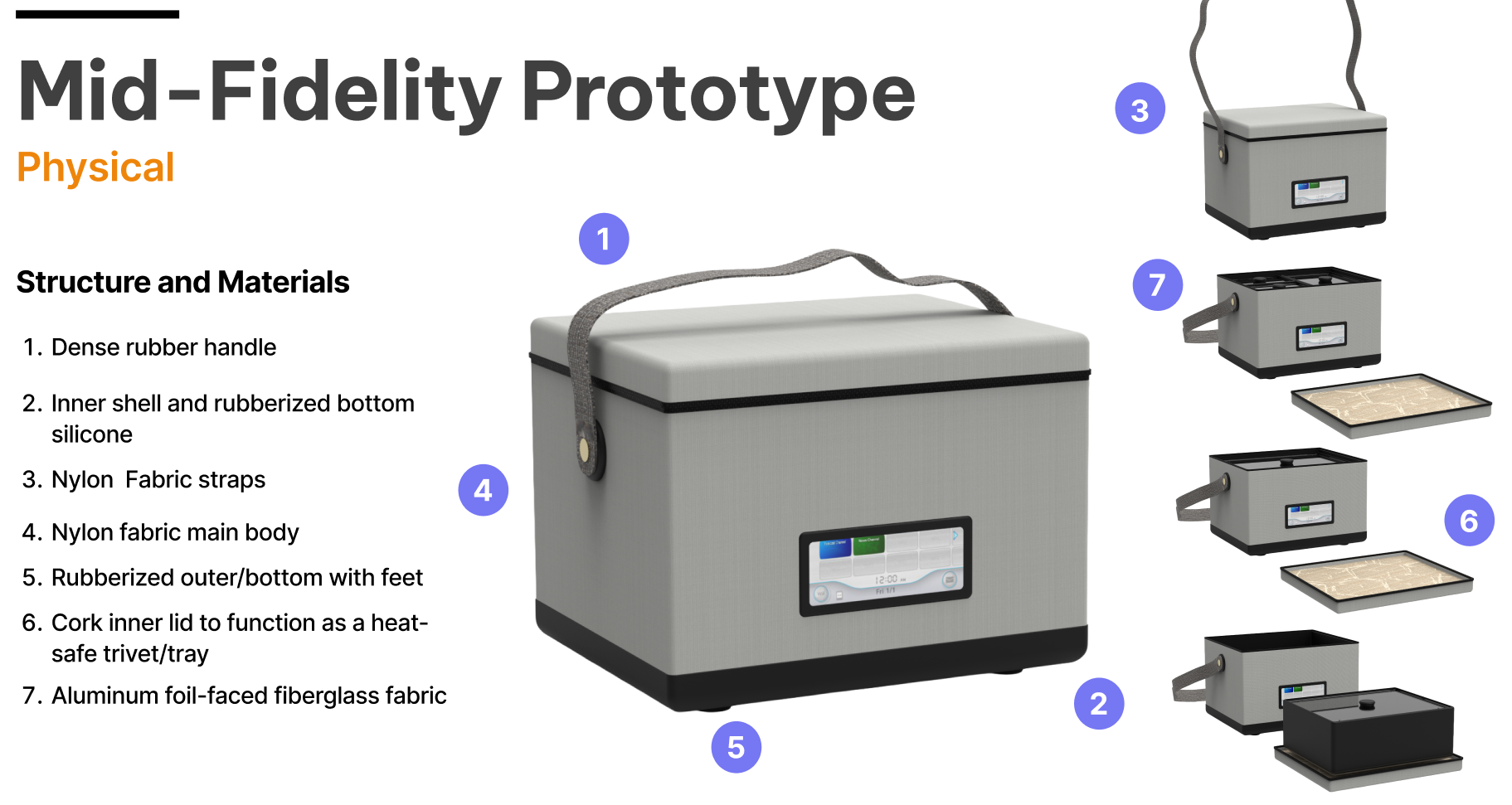

Mid-fidelity CAD model for Yogi physical prototype

Digital Development

Building the app around ingredients, recipes, cooking, and feedback.

The app supported the lunchbox by helping users track ingredients, discover recipes, control cooking, and maintain meal-prep routines. Early wireframes focused on structure and task flow before moving into a more polished visual system.

The mid-fidelity screens were used to test whether users could understand the main flows before the final interface was developed.

Low fidelity Yogi app screens for early digital prototype
Low fidelity Yogi app search and prep flow
Low fidelity Yogi app onboarding flow

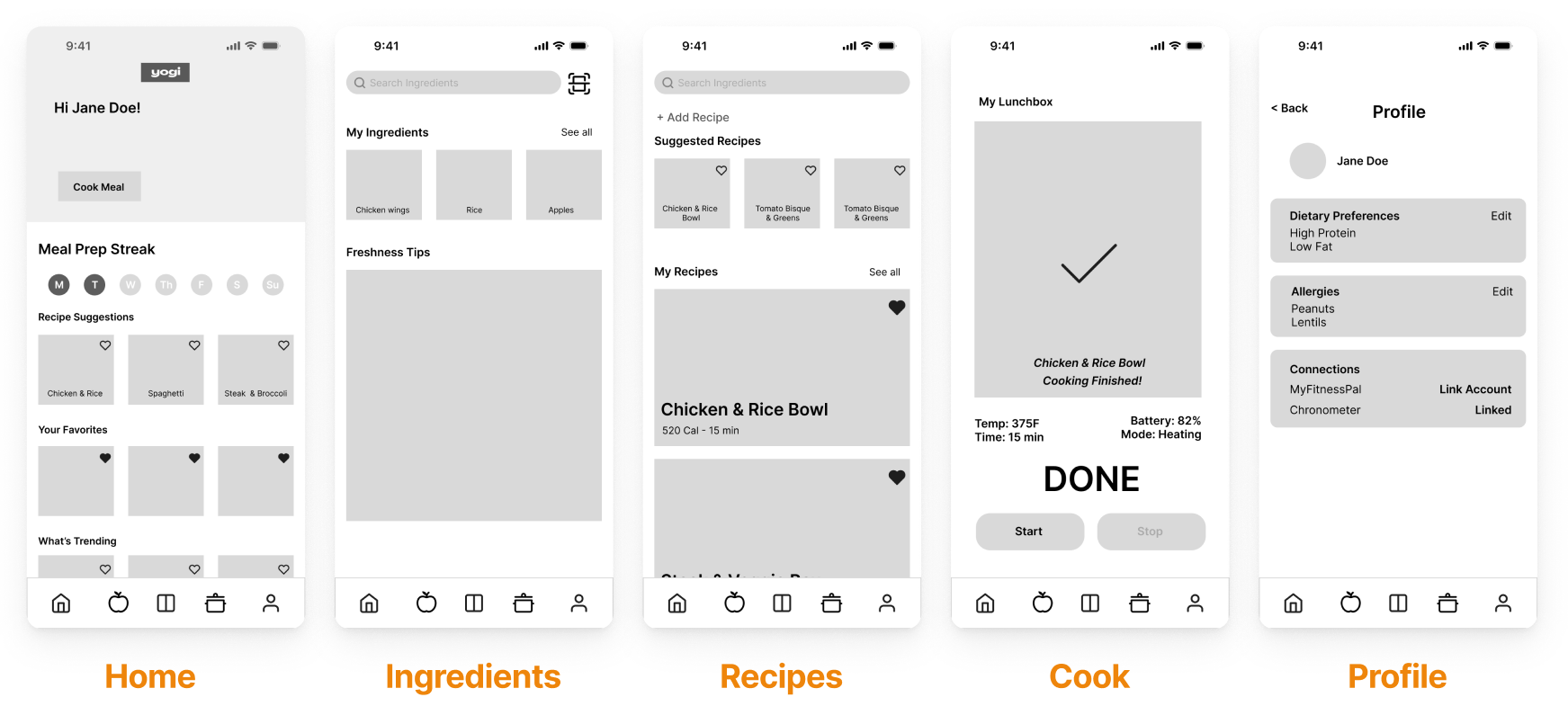

Mid fidelity Yogi app screen set

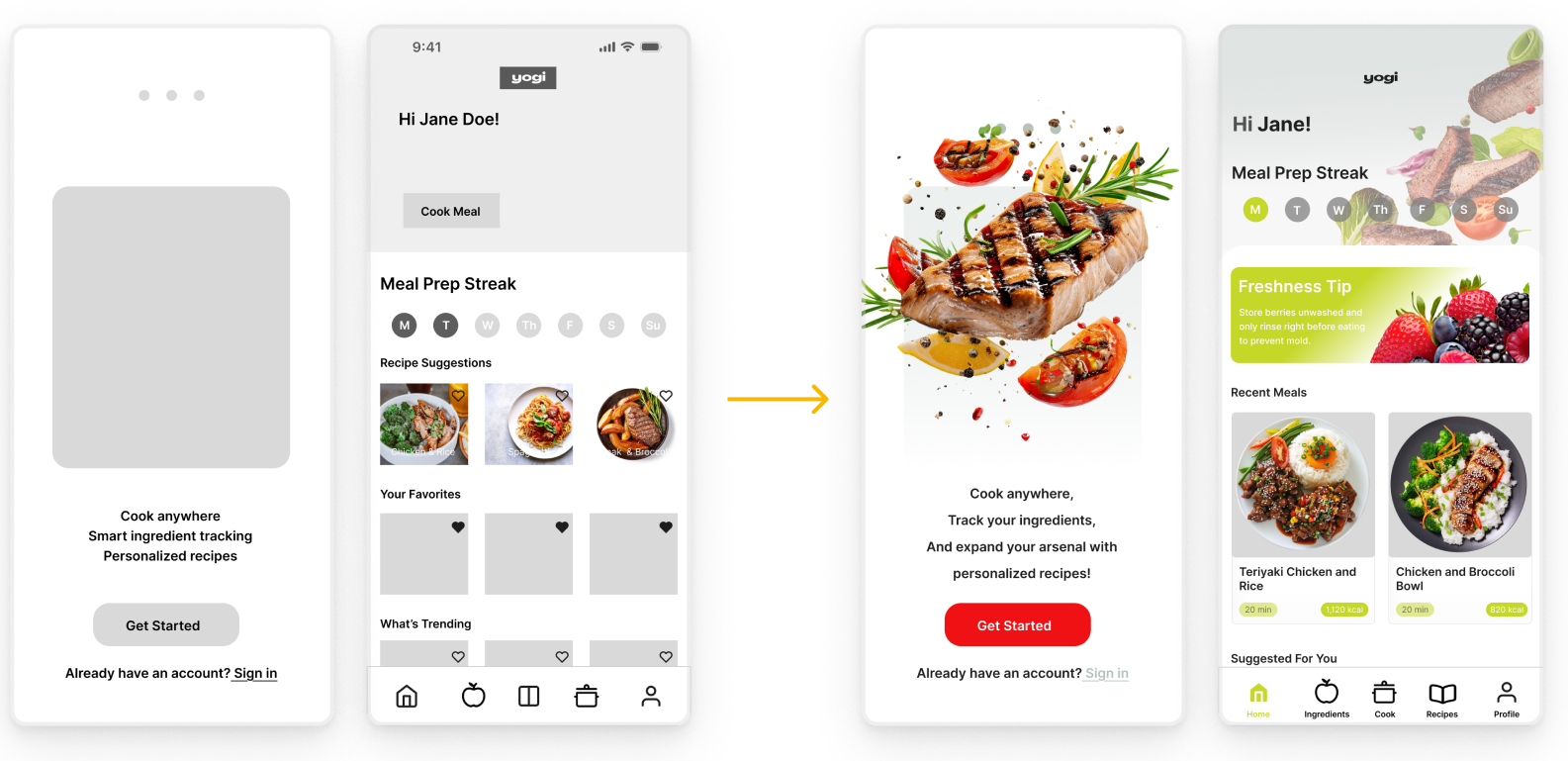

Refined Yogi app screens after user feedback

Testing

Testing both the physical lunchbox and the digital app before final refinement.

User testing evaluated the concept as a combined physical and digital system. Participants interacted with the physical prototype and app screens to test clarity, perceived usefulness, portability, recipe discovery, ingredient tracking, and cooking setup.

Feedback showed that users liked the modular lunchbox and found the app useful for ingredient tracking and recipes, but the system needed clearer usability details, simpler navigation, and refinement around hot parts, container fit, and portability.

Yogi user testing with physical prototype and digital prototype
Yogi usability ratings for physical product and app prototype

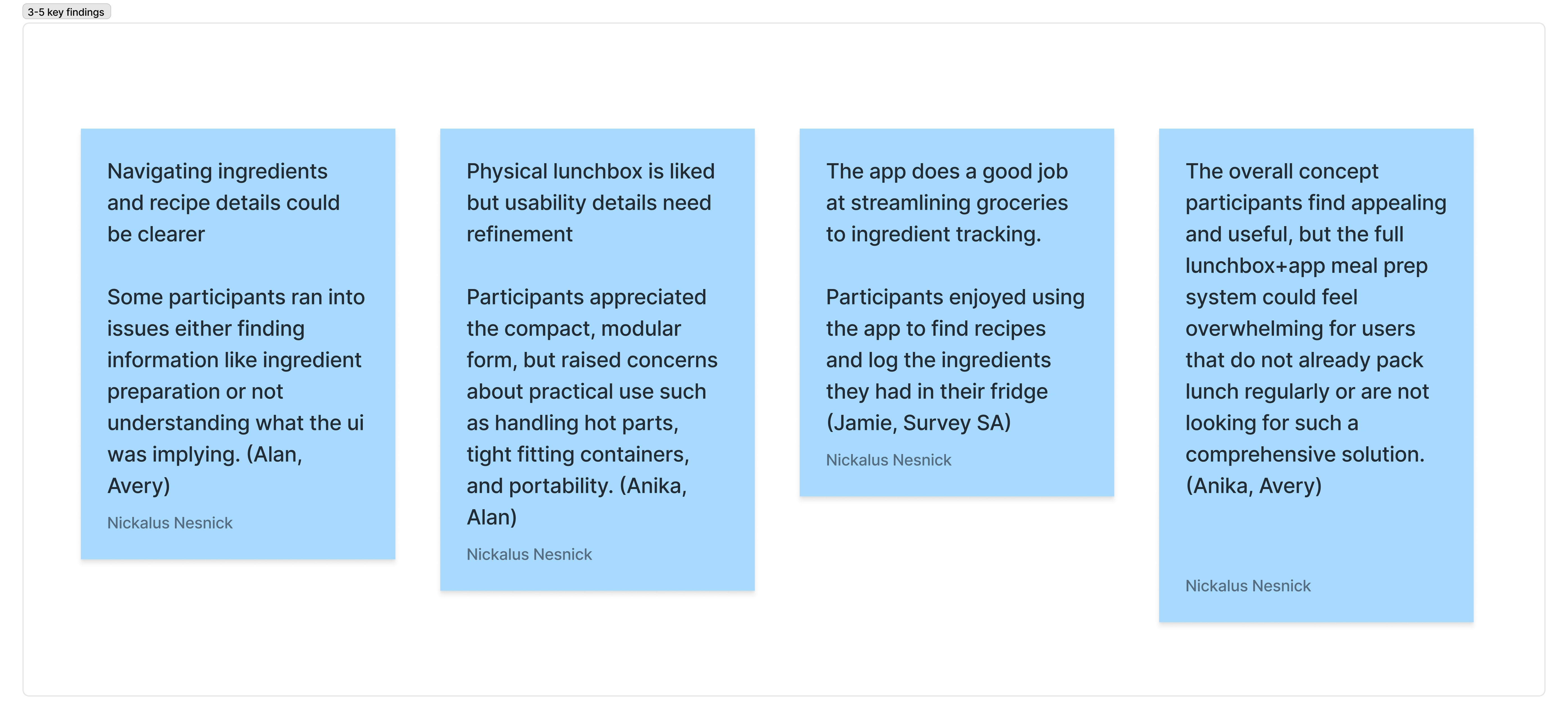

Yogi testing key findings about app clarity and lunchbox usability

Final Product Design

Refining the lunchbox into a softer, more approachable cooking system.

After testing, the physical design was refined into a softer rectangular form with a visible control panel, strap-based portability, rounded edges, insulated surfaces, and a material palette that felt more like a lunch object than a kitchen appliance.

The final form emphasized portability, cleanability, heat protection, and a familiar object language so the cooking function would feel approachable in student spaces.

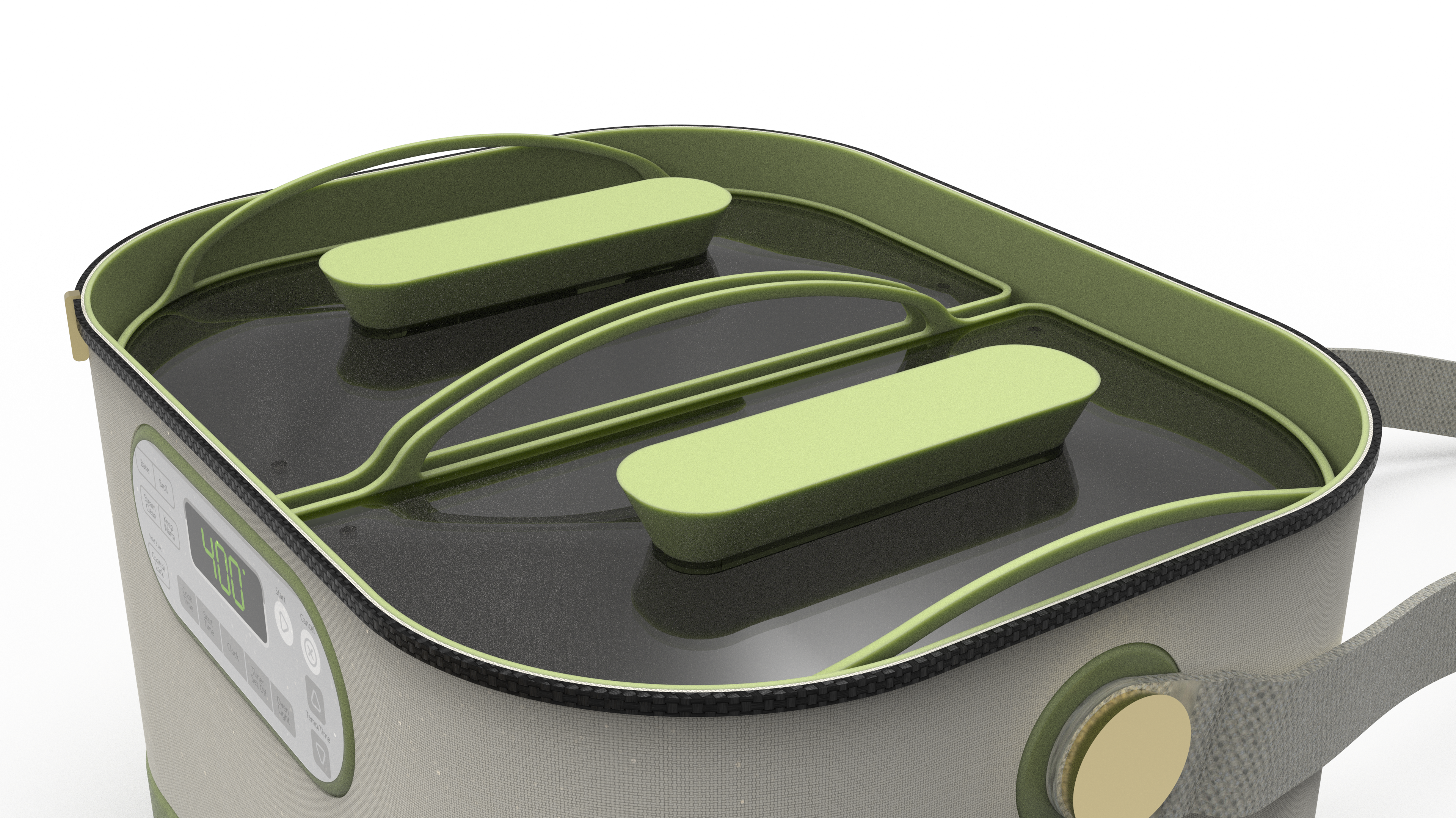

Yogi product render showing the lunchbox front and strap

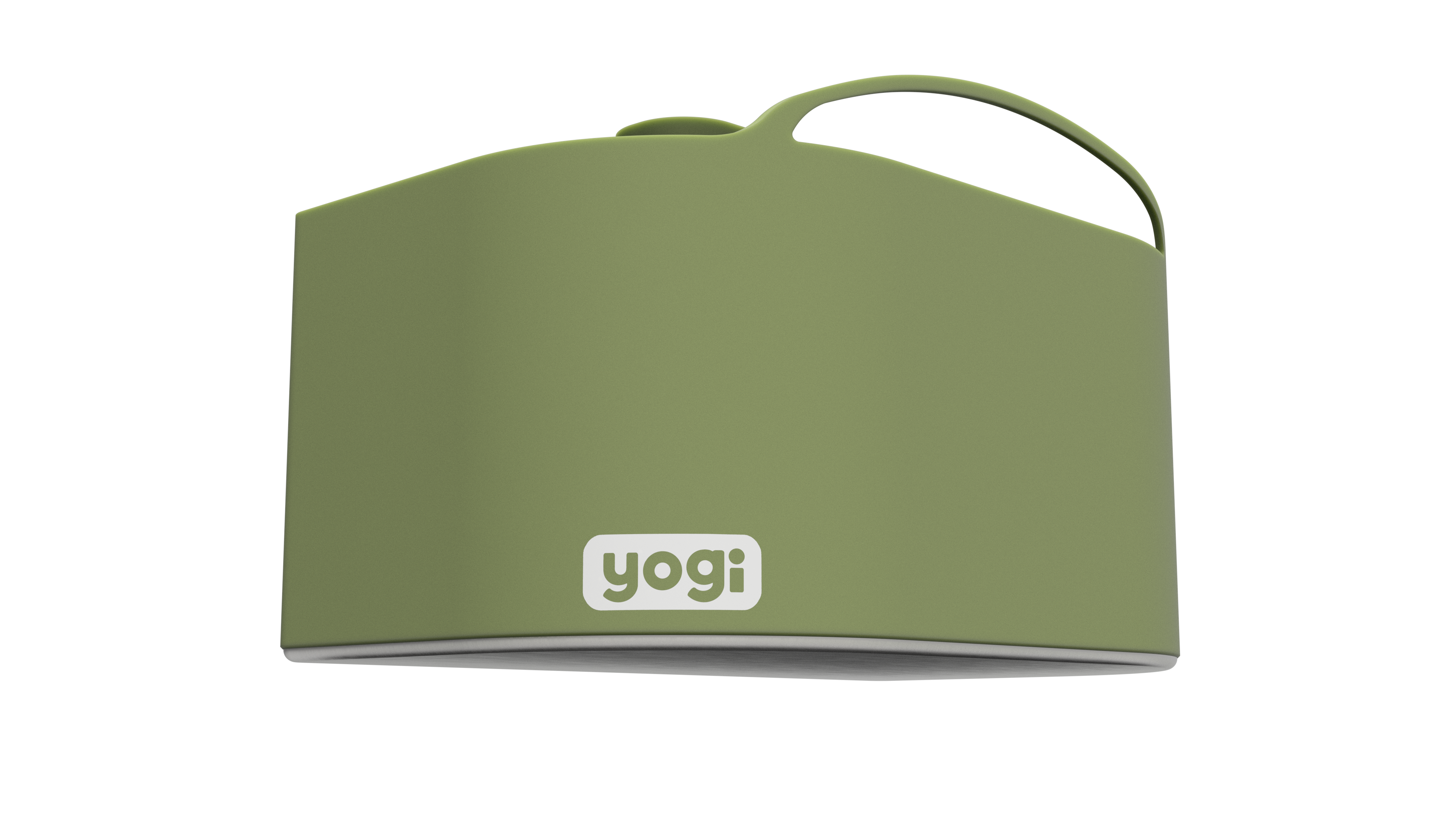

Yogi product render showing branding on the lunchbox body

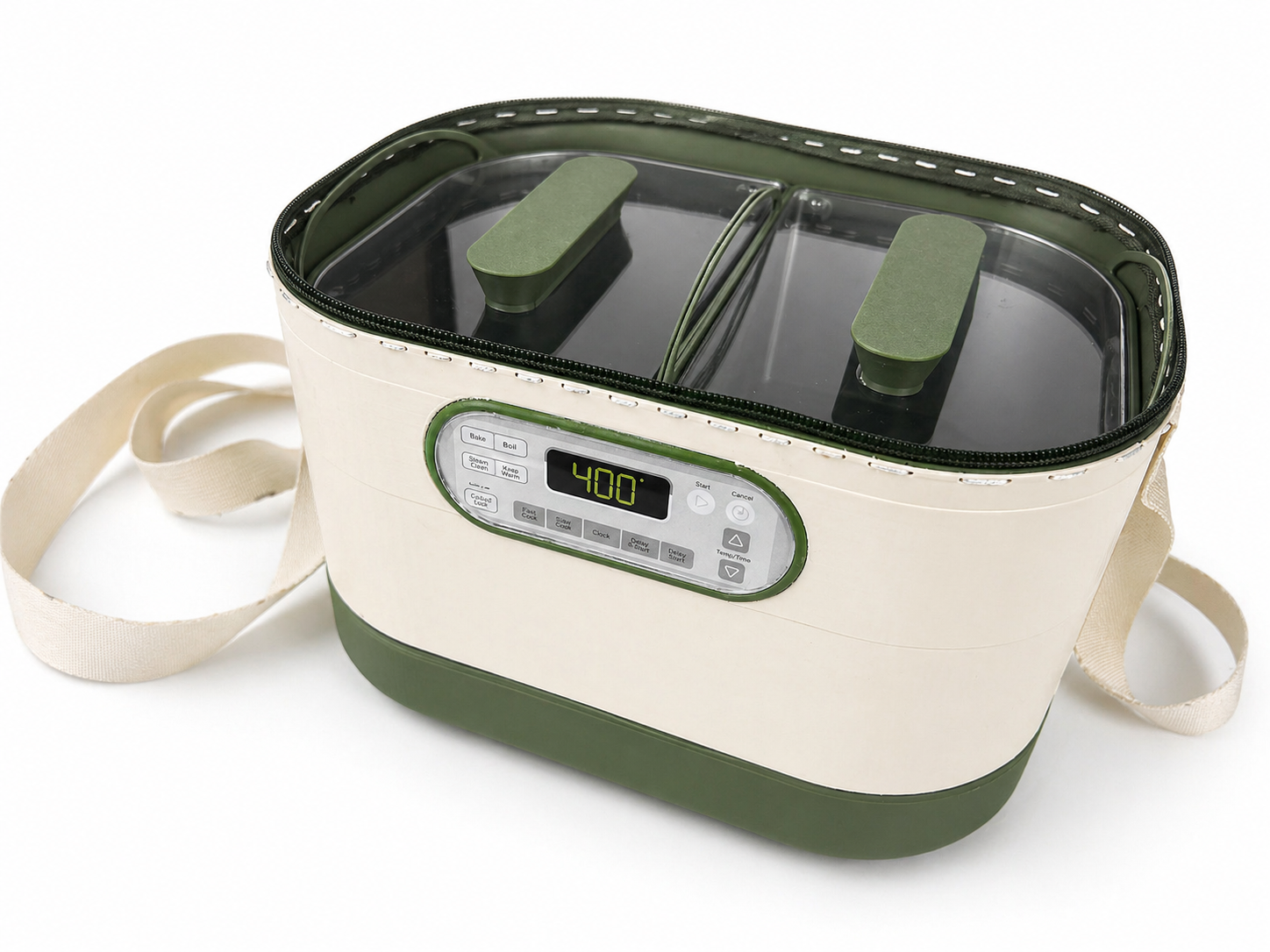

Physical Yogi prototype opened to show the removable internal cooking containers

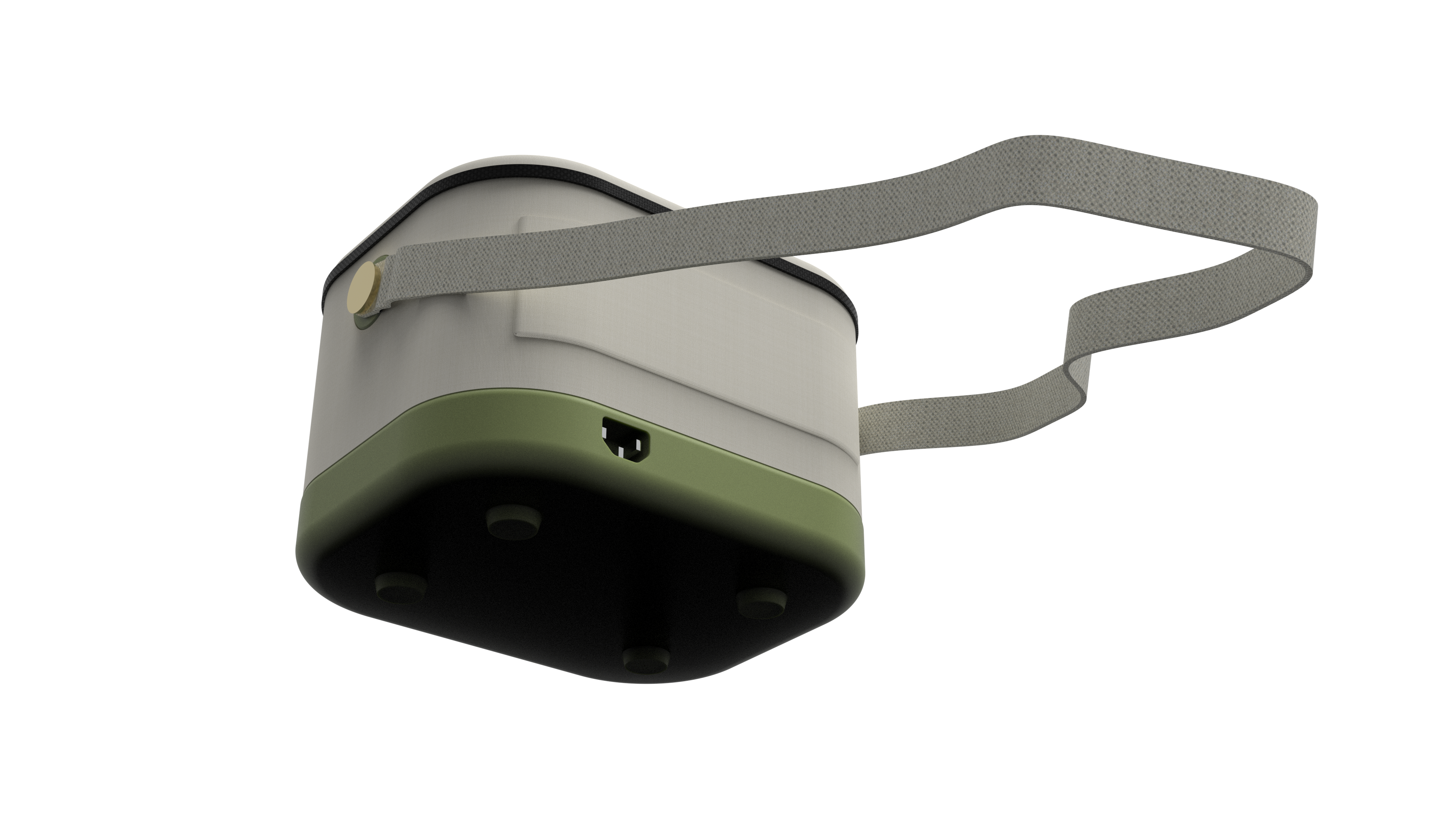

Yogi product render showing plug and back side details
Yogi product render showing lid and material detail

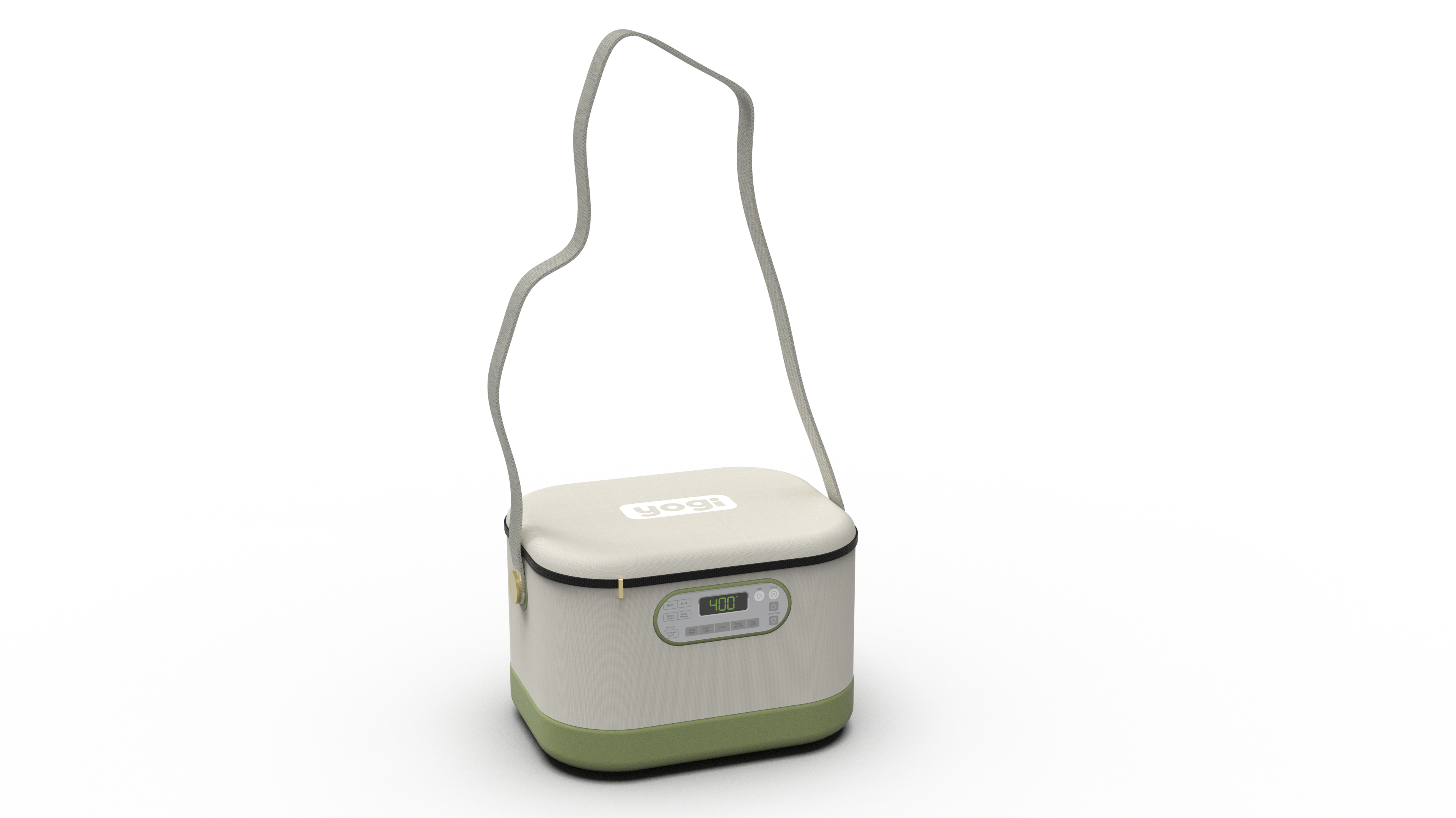

Yogi product render showing the carrying handle

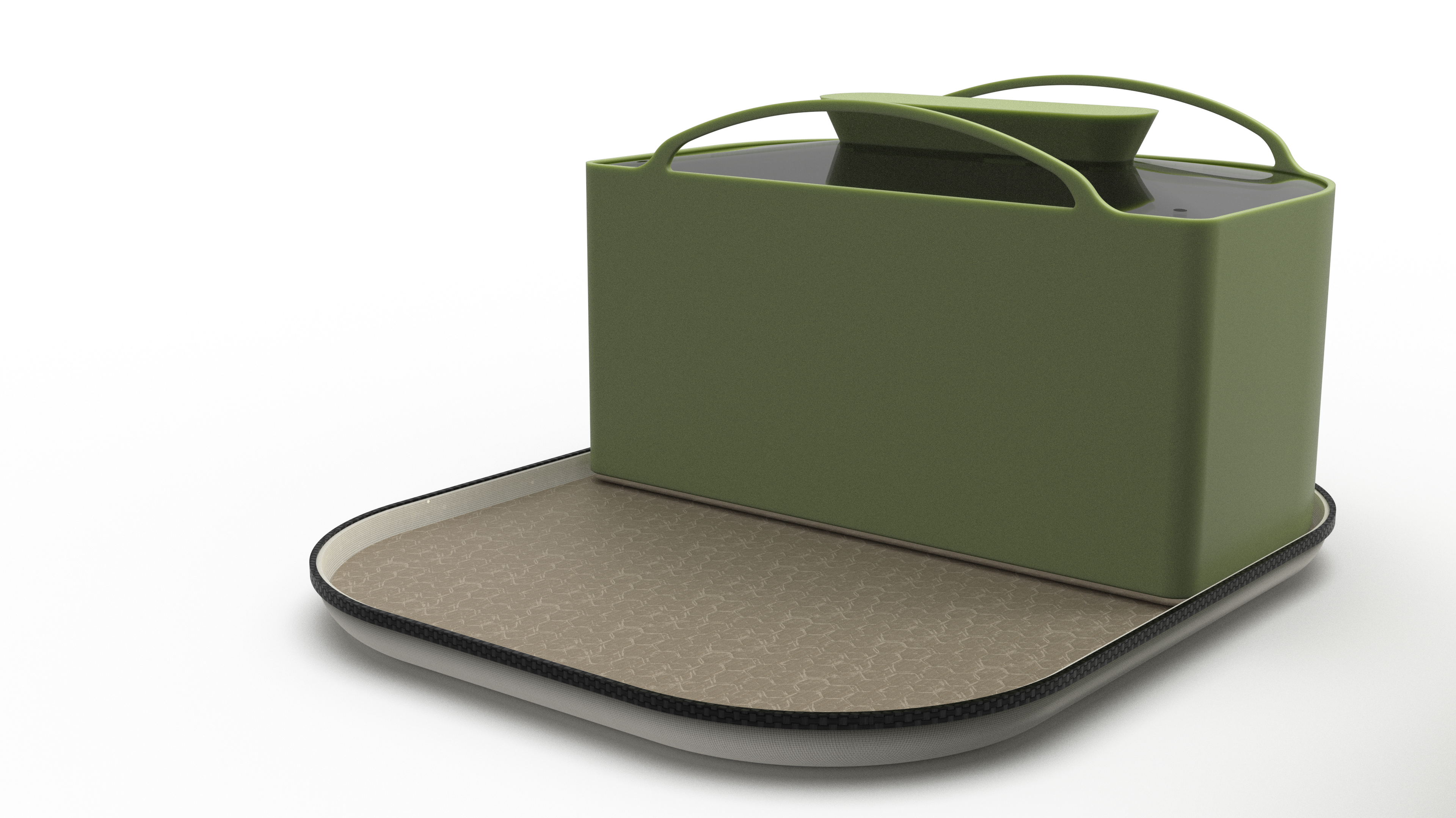

Yogi product render showing cork board tray feature

Final App Design

Making the companion app feel more food-focused and useful.

The final interface used a brighter food-focused visual direction, recipe imagery, freshness tips, meal-prep streaks, profile settings, ingredient tracking, and cooking controls to make the system feel more approachable and motivating.

The app acts as the planning and feedback layer for the lunchbox, helping students move from ingredients to recipes to cooking with fewer decisions.

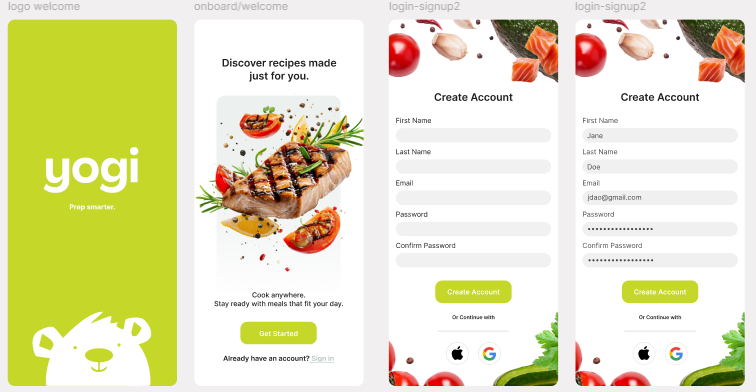

High fidelity Yogi app onboarding and home screens

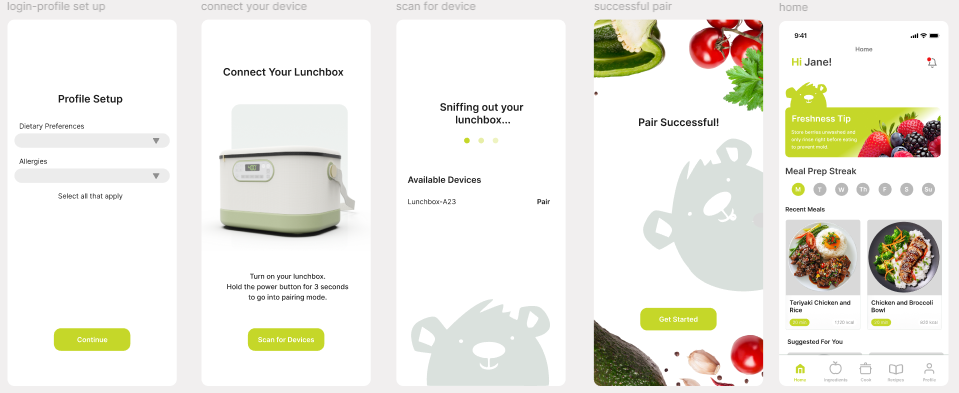

High fidelity Yogi app login and signup screens
High fidelity Yogi app ingredients screens
High fidelity Yogi app recipe screens
High fidelity Yogi app profile settings screen

Final Direction

A connected meal-prep system for cooking anywhere.

The final concept pairs a portable cooking lunchbox with a companion app that helps students track ingredients, receive freshness tips, find personalized recipes, and control cooking around their schedules.

Yogi demonstrates product-system thinking across research, physical product design, app design, prototyping, usability testing, and visual communication.

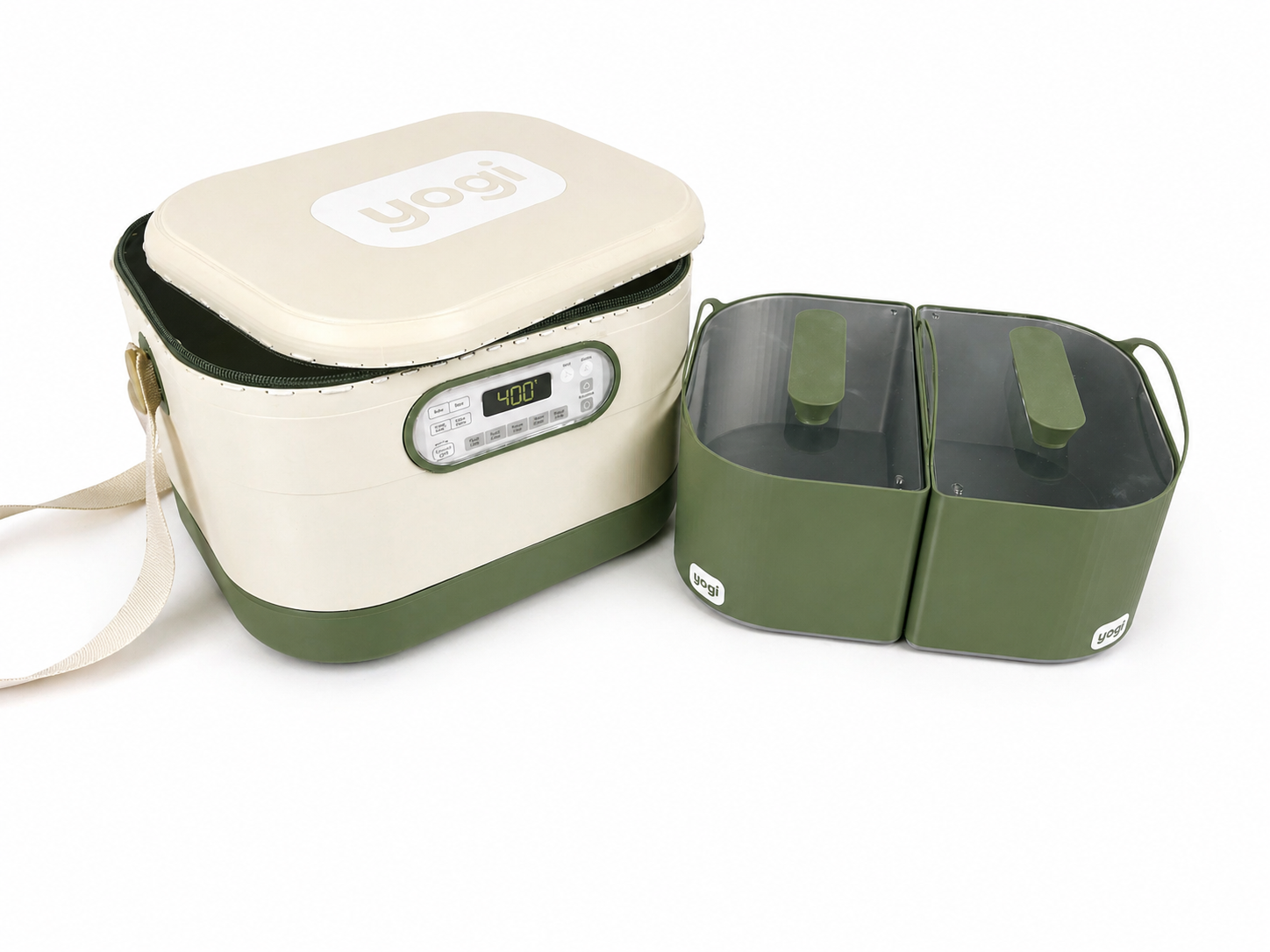

Final Yogi physical prototype shown with removable containers beside the lunchbox

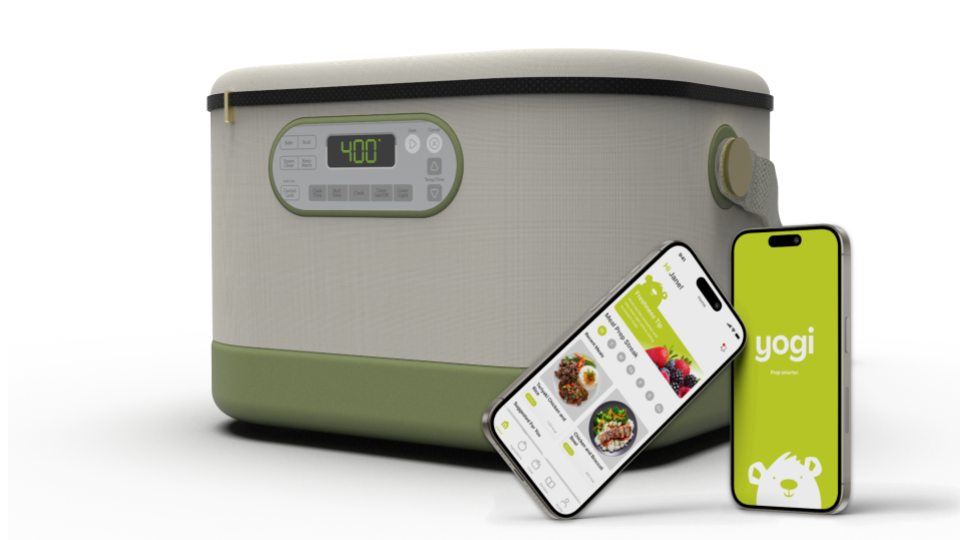

Final Yogi product and app system
